Logic Analyzer Interface Adapters

LOGIC_ANALYZER_INTERFACE Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

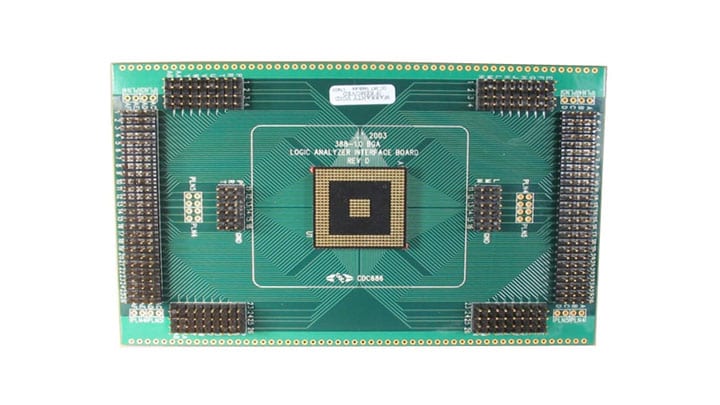

Logic analyzer interface adapters allow easy connection of test equipment to all of the pins on high density QFP or BGA/LGA devices. Used in conjunction with Device and Target adapters.

Product Details

Features

Available in wide variety of pinout options

  • QFP: 100, 112, 132, 144, 160, 184
  • BGA: 196, 208, 217, 256, 272, 324,388, 416, 480, 516

Pitch options

  • QFP: 0.5, 0.635, 0.65 mm
  • BGA: 1.00 and 1.27 mm

Buy Options

LFLAIBXC-Image

Click to expand

  • LFLAIBXC
    Active

  • 480 PIN 1.27 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $500.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
LFLAIBS1A-Image

Click to expand

  • LFLAIBS1A
    Active

  • 256 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBW1A-Image

Click to expand

  • LFLAIBW1A
    Active

  • 422 pin 1.0mm pitch Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBZ1A-Image

Click to expand

  • LFLAIBZ1A
    Active

  • 522 PIN 1.0 MM pitch Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBWA-Image

Click to expand

  • LFLAIBWA
    Active

  • 416 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBZA-Image

Click to expand

  • LFLAIBZA
    Active

  • 516 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBVA-Image

Click to expand

  • LFLAIBVA
    Active

  • 388 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBU1A-Image

Click to expand

  • LFLAIBU1A
    Active

  • 324 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBTC-Image

Click to expand

  • LFLAIBTC
    Active

  • 272 PIN 1.27 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $500.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
LFLAIBSC-Image

Click to expand

  • LFLAIBSC
    Active

  • 217 PIN 1.27 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $500.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
LFLAIBS1C-Image

Click to expand

  • LFLAIBS1C
    Active

  • 256 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $600.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
LFLAIBQA-Image

Click to expand

  • LFLAIBQA
    Active

  • 208 PIN 1.0 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBRC-Image

Click to expand

  • LFLAIBRC
    Active

  • 208 PIN 1.27 MM Logic Analyzer Board to test high density BGA/PGA devices.

  • $400.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
LFLAIBP1C-Image

Click to expand

  • LFLAIBP1C
    Active

  • 196 PIN 1.0 MM PGA Logic Analyzer Board to test high density PGA devices.

  • $500.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
LFLAIBLT-Image

Click to expand

  • LFLAIBLT
    Active

  • 144 Pin 0.5MM QFP Logic Analyzer Board to test high density QFPs and Microcontrollers.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LFLAIBHT-Image

Click to expand

  • LFLAIBHT
    Active

  • 100 Pin 0.5MM QFP Logic Analyzer Board. Allows user customization for specific MCU and MPU devices.

  • $525.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
