The Flexray Daughter Card (FRDC) is an additional board that can be used in conjunction with some NXP® Evaluation Boards (EVBs) to enable customers to learn about and evaluate Flexray Networks using NXP solutions that do not have Flexray on chip. The FRDC can be connected to a number of different EVB's including some from the MPC500, MPC5500 and S12(X) (families).
A list of MCUs and tools that can be used in conjunction with the FRDC is shown under “Supported Devices.” For a complete solution, the adapter board must be ordered with the MFR4310FRDC.
NXP has a wide range of products which include integrated Flexray controllers.
| Microcontroller | Microcontroller Evaluation Board (EVB) Part Number | Adaptor Board | Adaptor Board Part Number | |
| MPC500 (Family) | MPC561, MPC562, MPC563, MPC564 | MPC564EVBE | FLXRAYADPT500 | FLXRAYADPT500 |
| MPC5500 (Family) | MPC5553, MPC5554 | MPC5553EVBE, MPC5554EVBE | FLXRAYADPT5500 | FLXRAYADPT5500 |
| S12 | HCS12 Dx, A, and B Family MCUs | M68KIT912DP256 | SCFLXRAYADPTS12 | SCFLXRAYADPTS12 |
| S12XDP512 | MC9S12XDP512 | EVB9S12XDP512 | No Adapter Needed - Plugs in directly to EVB | |

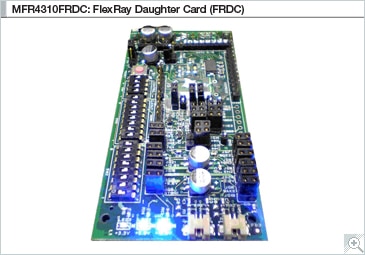

FlexRay Daughter Card for MPC500/MPC5500 and S12(X) Evaluation Boards.
Note: These are targeted for evaluation purposes with own or NXP hardware.
