S12ZVL32 RGB LED Lighting Reference Design

S12ZVL32-LED

Roll over image to zoom in

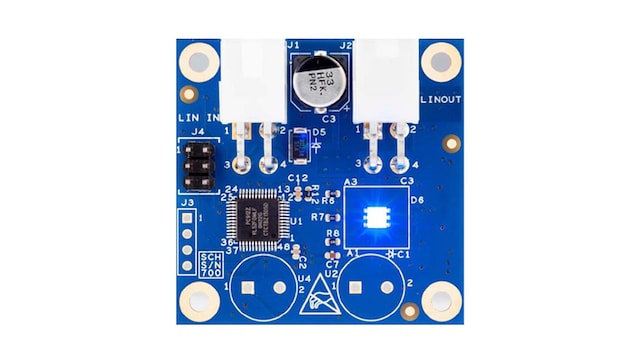

The S12ZVL32-LED is a reference design board engineered for RGB light-emitting diode (LED) control and diagnostics using local interconnect network (LIN).

Based on the 16-bit S12 MagniV® S12ZVL mixed-signal microcontrollers, the S12ZVL32-LED offers an automotive voltage regulator, a LIN interface, a Vsup module to sense automotive battery voltage and an HVI pin.

Block Diagram

RGB LED Lighting

S12ZVL32 RGB LED Lighting - Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVL: S12ZVL Mixed-Signal MCU for Automotive and Industrial LIN Applications

Features

Design Features

  • Small footprint
  • 16-bit PWM to control RGB LED light intensity smoothly

Software

  • ANSI-C based reference software with easy portability
  • The RGB LED controlled by the FreeMASTER tool, including visualization support
  • The RGB LED voltage is recalculated by the AMMCLIB modules to enable LED diagnostics

Buy Options

TRK-S12ZVL-Image

Click to expand

  • TRK-S12ZVL
    Active

  • TWR-S12ZVL32 board for RGB LED Lighting.

  • $245.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
