High Voltage Wireless Charging Receiver

WPR1500-HV

Roll over image to zoom in

Product Details

Select a section:

Features

  • Compliant with the EPP WPC Qi V1.3x specification, compatible with V1.2.4
  • Input voltage (3.5 V – 20 V AC peak) from the transmitter through the receiver coil.
  • Output voltage range can be set from 3.5 V to 20 V.
  • Default output power 15 W(12 V@1.25 A), can be extended up to 30 W(20 V@1.5 A).
  • Hardware protection of rectifier voltage, output voltage and output current
  • Software based solution to provide maximum design freedom and product differentiation.
  • Enhanced EMC performance
  • Power transfer efficiency exceeds 80%

Buy Options

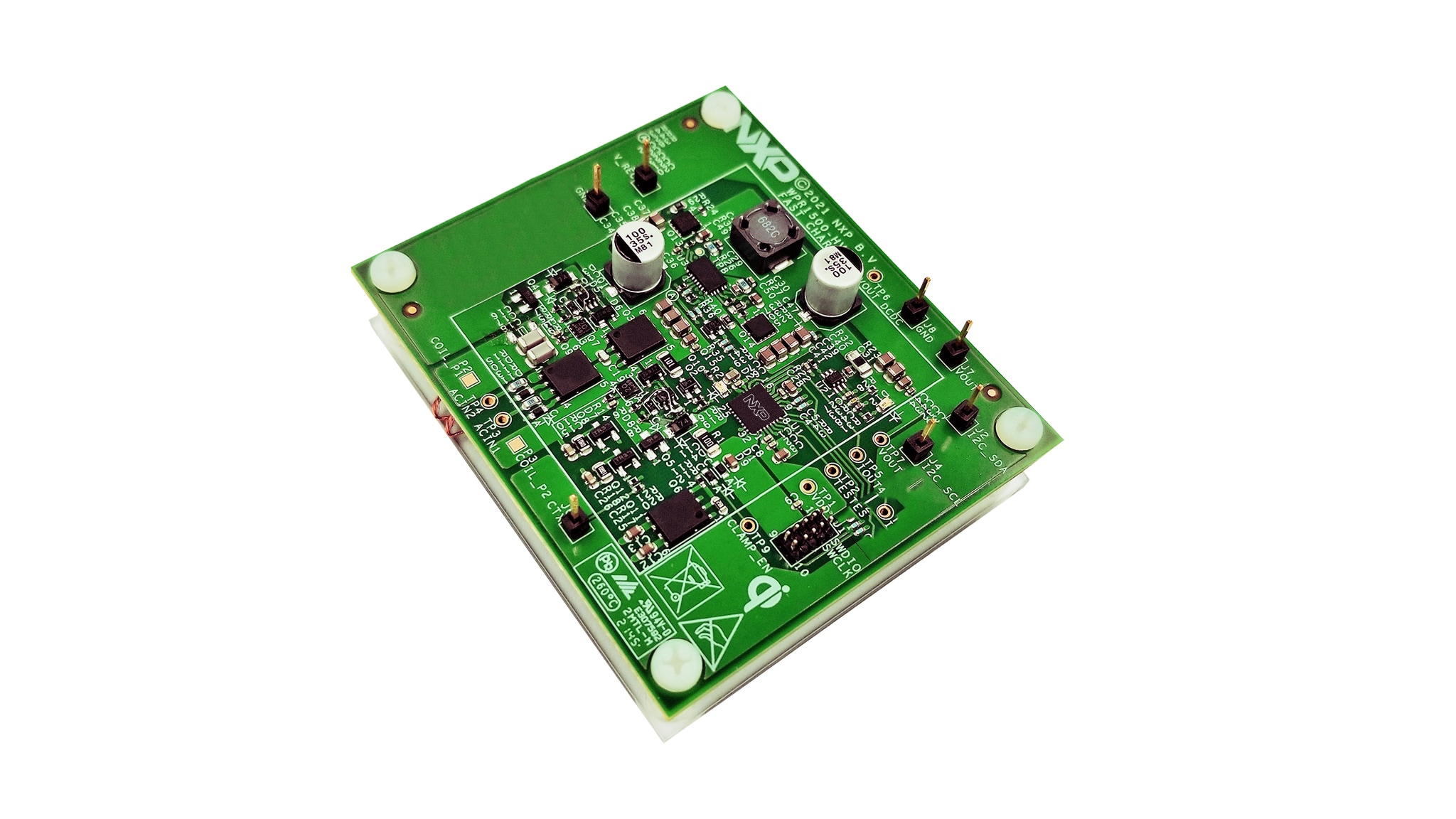

WPR1500-HV-Image

Click to expand

  • WPR1500-HV

  • High Voltage Wireless Charging Receiver.

  • $208.00 USD
  • For a quantity of 1
Buy From Distributor
