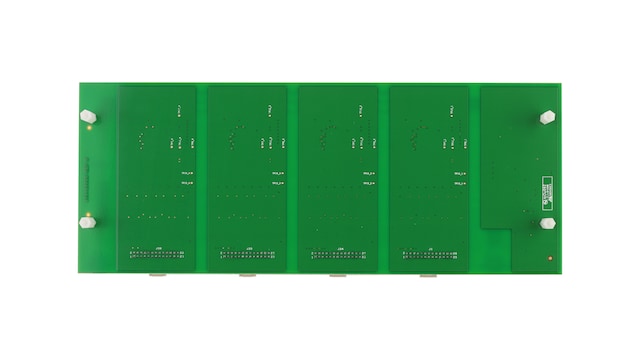

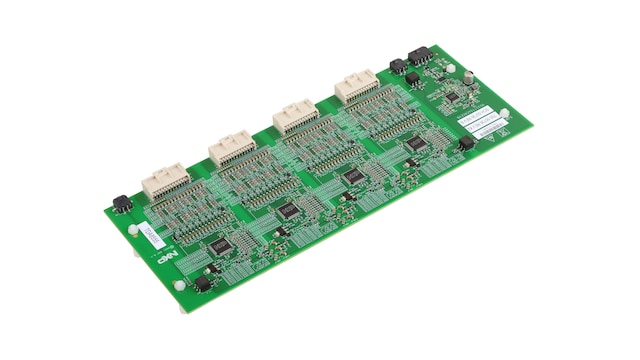

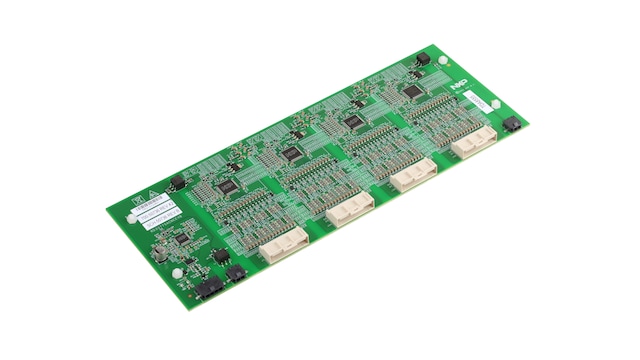

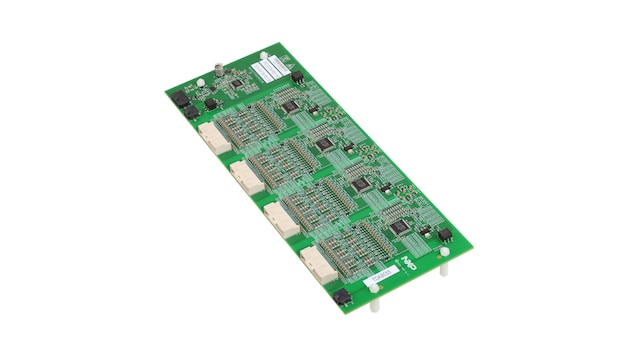

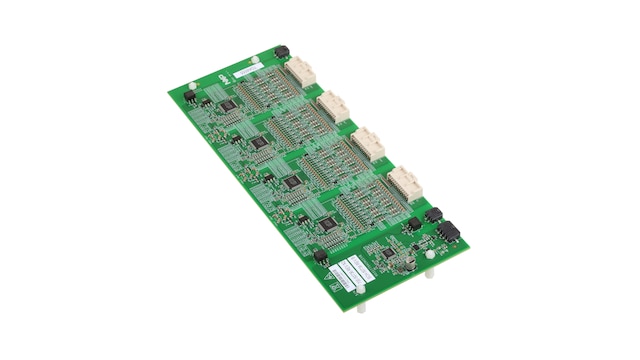

HVBMS Centralized Cell Monitoring Unit Using CAN FD with MC33775A (CMU)

RD33775ACNCEVB

Roll over image to zoom in

Product Details

Supported Devices

Power Management

Battery Communication ICs

Battery Cell Controllers

Interfaces

CAN with Flexible Data Rate

Features

Voltage Measurements

  • 4 MC33775A Battery cell controllers (BCCs) for up to 56 cells, extendable by adding more CMUs to the daisy chain
  • High accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurements

  • Temperature sensor inputs with advanced filtering per BCC

Cell Balancing

  • Integrated cell balancing with up to 300 mA

Communication

  • CAN FD communication
  • High speed CAN FD transceiver up to 5 Mbit/s

Buy Options

RD33775ACNCEVB-Image

Click to expand

  • RD33775ACNCEVB

  • HVBMS Centralized Cell Monitoring Unit Using CAN FD with MC33775A (CMU).

  • $450.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
BATT-14CTCABLE25-Image

Click to expand

  • $34.50 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
