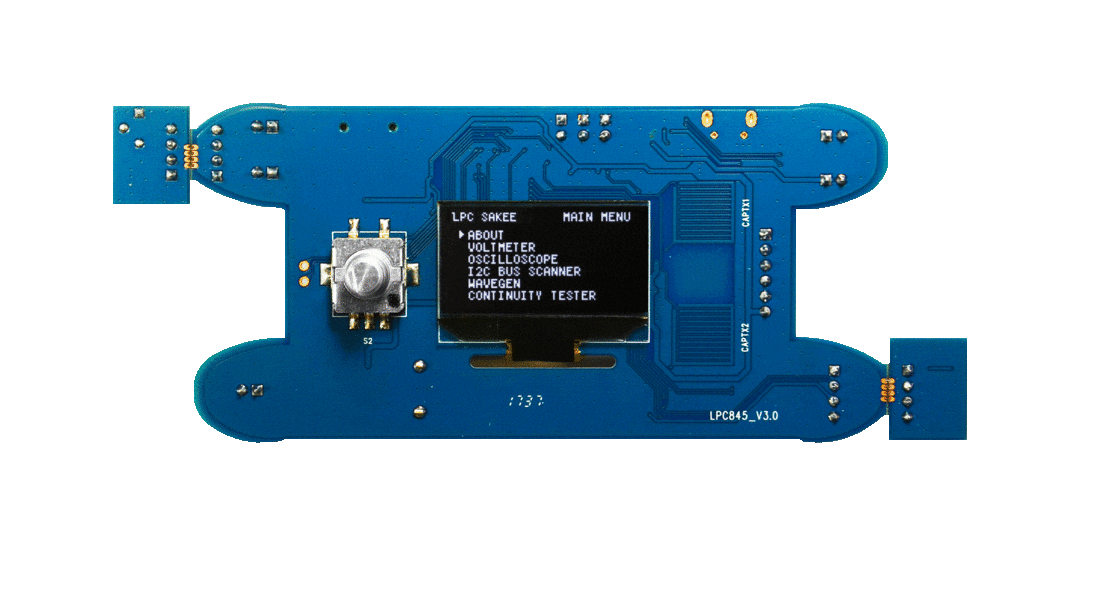

LPC845 Multi-Tool Tester Platform

Roll over image to zoom in

Our low cost, multitester platform is suitable for adaptation to a range of system monitoring applications.

Provided as an open source design, the code and board files for this multitester are fully available for use as the starting point for customer designs.

Design Files

Software

Product Details

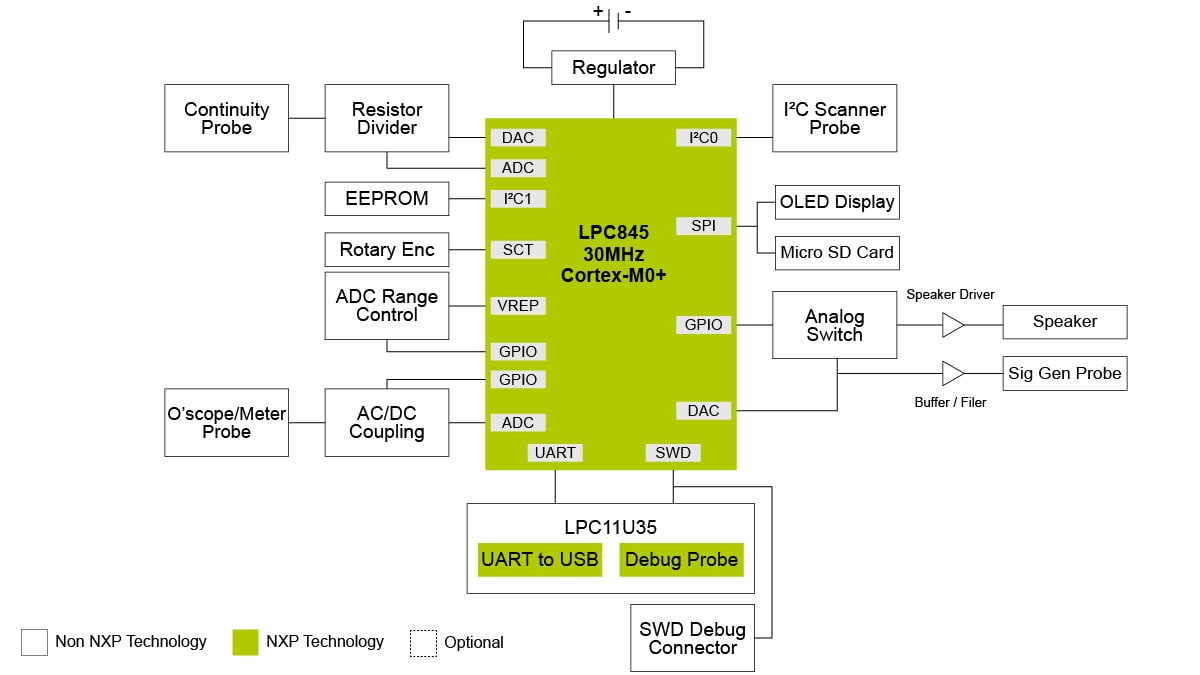

Block Diagram

LPC845 Multi-tool Tester

Get diagram PDF

Supported Devices

Processors and Microcontrollers

LPC800 Cortex-M0+

LPC84X: Low-Cost Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Cores

LPC1100 Cortex-M0+/M0

LPC11U00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M0+ and Cortex^®-M0 Cores

Features

Peripherals

OLED dot-matrix display
Oscilloscope with AC-DC input coupling control
Voltmeter
Continuity tester
Built-in speaker with amplifier

Design Features

User interface control using rotary encoder, controlled using LPC845 SCT
I2C-bus scanner detects all connected I2C devices

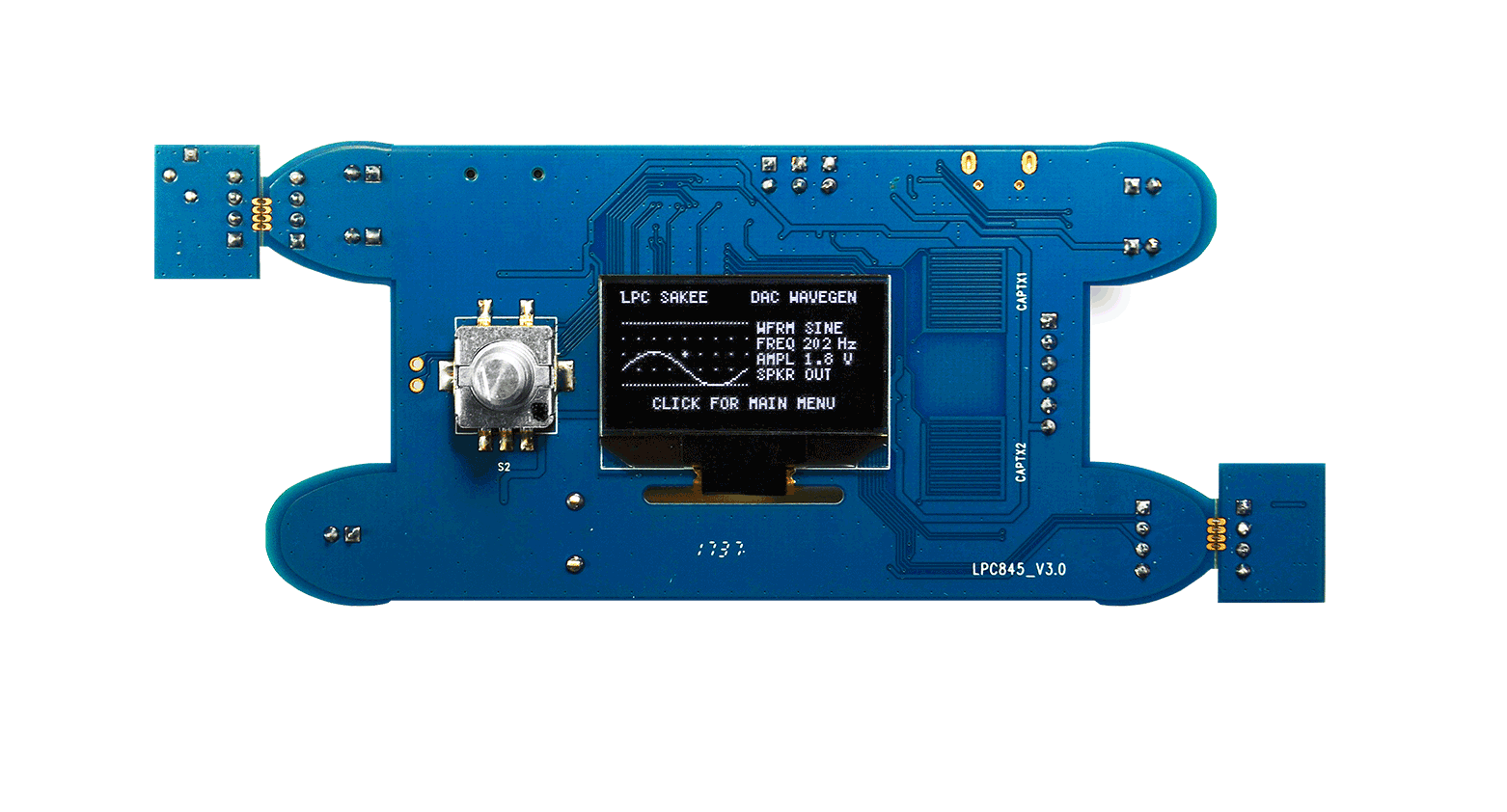

Waveform generator with sine, triangle, exponential, and user waveform output
Integrated debug probe / USB VCOM interface

Buy Options

Click to expand

OM13097
LPCXpresso845-MAX Board for LPC84x MCU family.
Kit contains:
- LPCXpresso845-MAX Development Board

$19.00 USD
For a quantity of 1
- Availability: In stock
- Inventory: 48
- Shipping: Normally ships 1-2 business days

Buy from NXPBuy From Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Documentation

Quick reference to our documentation types.

1 documents

Clear all

^{Reference Manual}
Sakee Part1 2017-Oct-12

PDFRev 1Oct 12, 20171.5 MBSakee_Part1_2017-Oct-12English
Sign in required

Design Files

1 design file

Clear all

^{Printed Circuit Boards and Schematics}
LPC845_V3.0-20170907-1928

ZIPRev 3.0Oct 11, 2017704.3 KBLPC845-Software
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Software

1 software file

Clear all

^{IDE and Build Tools}
LPC84x SAKEE (Swiss Army Knife for Electric Engineers)

HTMLRev 0Oct 12, 2017Microbuilder-Github-LPC845-Multi-tester

Download

Note: For better experience, software downloads are recommended on desktop.
