S12ZVH HVAC control with LCD

S12ZVH-HVAC-LCD-1

Roll over image to zoom in

The purpose of the design is to replace the existing mechanical switches, used for vent positions, blower speed and temperature control, with interactive LCD based system for longevity and robustness of the system. The system can serve the events from capacitive touchpad interface (controlled through NXP’s Proximity Capacitive Touch Sensor Controller PT60), IR Remote control (provided for the ease of rear-seat passengers) or micro-switches.

Product Details

Select a section:

Features

  • LCD based Graphics Interface
  • Automatic Climate Control
  • Control for airflow (Face, Foot, Defrost, Face and Defrost, and Face and Foot) directions using actuator motors
  • Control for defogger using actuator motor
  • Control for recirculation using actuator motor
  • 5-level control for blower speed using PMDC motor
  • 9-level control for cooling/warming using actuator motor
  • Car’s cabin temperature display
  • Real Time Clock display and adjustment
  • Date display and adjustment
  • IR remote interface
  • 8 Touchpad interface
  • S12ZVH
    • Enhanced S12Z core at 32 MHz bus speed
  • MC33932
    • Each H-bridge in the MC33932 is able to control inductive loads with currents up to 5.0A peak
  • MC33984
    • Consists of very low RDSON devices in single or dual high side configuration to replace electromechanical relays or discrete devices in power management applications and DC motor control.

Buy Options

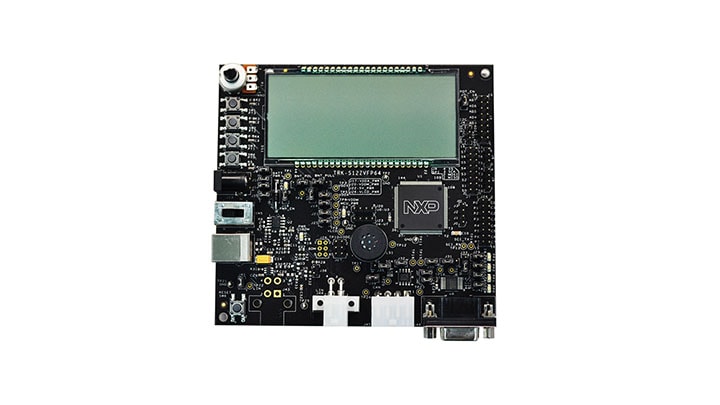

TRK-S12ZVFP64-Image

Click to expand

  • TRK-S12ZVFP64

  • Customer Evaluation Board for the VFP Device.

  • Kit contains

    S12 MagniV for Heating, Ventilation and Air Conditioning (HVAC) Applications

    • TRK-S12ZVFP64 Board
    • TRK-S12ZVFP64 DVD-ROM (includes CodeWarrior software)
    • USB A-to-B Cable
    • NXP Warranty Card
  • $315.00 USD
  • For a quantity of 1
Buy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    TRK-S12ZVFP64 Board schematics

    PDFRev A1Jan 2, 2015 00:00:00207.7 KBTRK-S12ZVFP64_SCH
