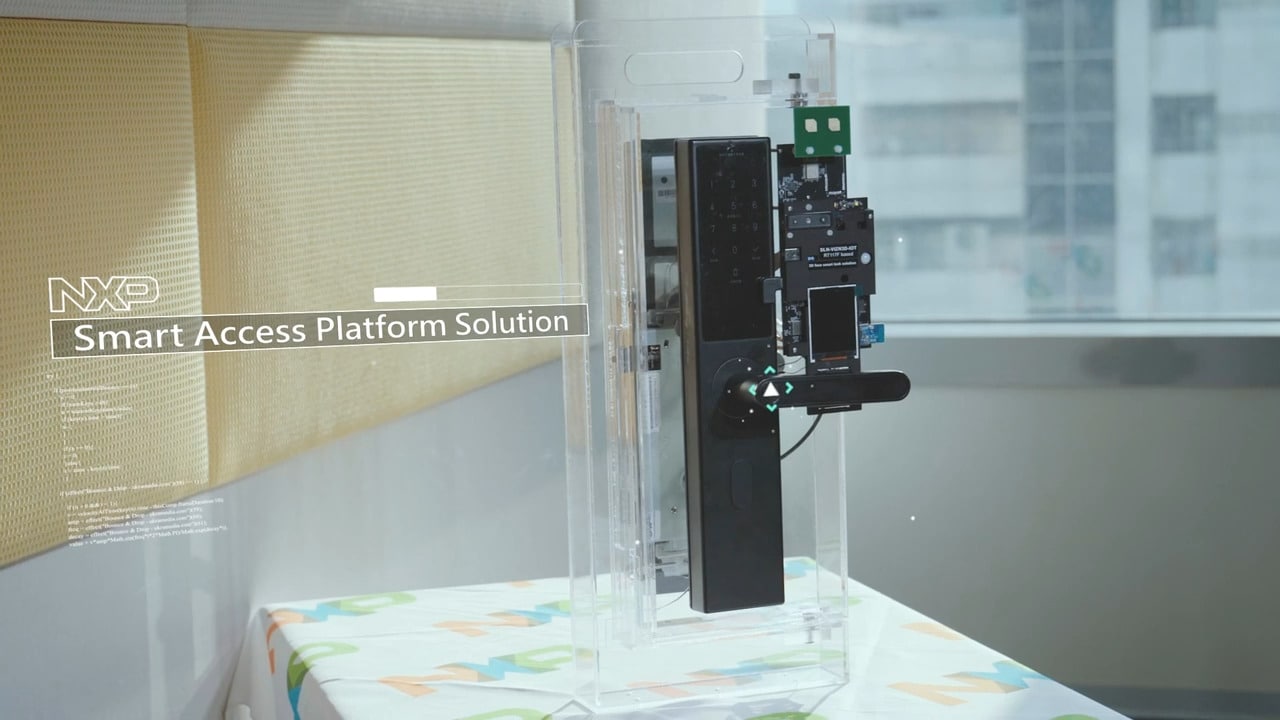

Smart Access Platform Solution

SMART-ACCESS-PLATFORM new

Click over video to play

Product Details

Block Diagram

Choose a diagram:

Smart Access Block Diagram

Smart Access Block Diagram

Smart Access Platform Solution Block Diagram

NXP EdgeReady Smart Access Platform Block Diagram

Supported Devices

RFID

NFC Readers

Wireless Connectivity

Bluetooth Low Energy

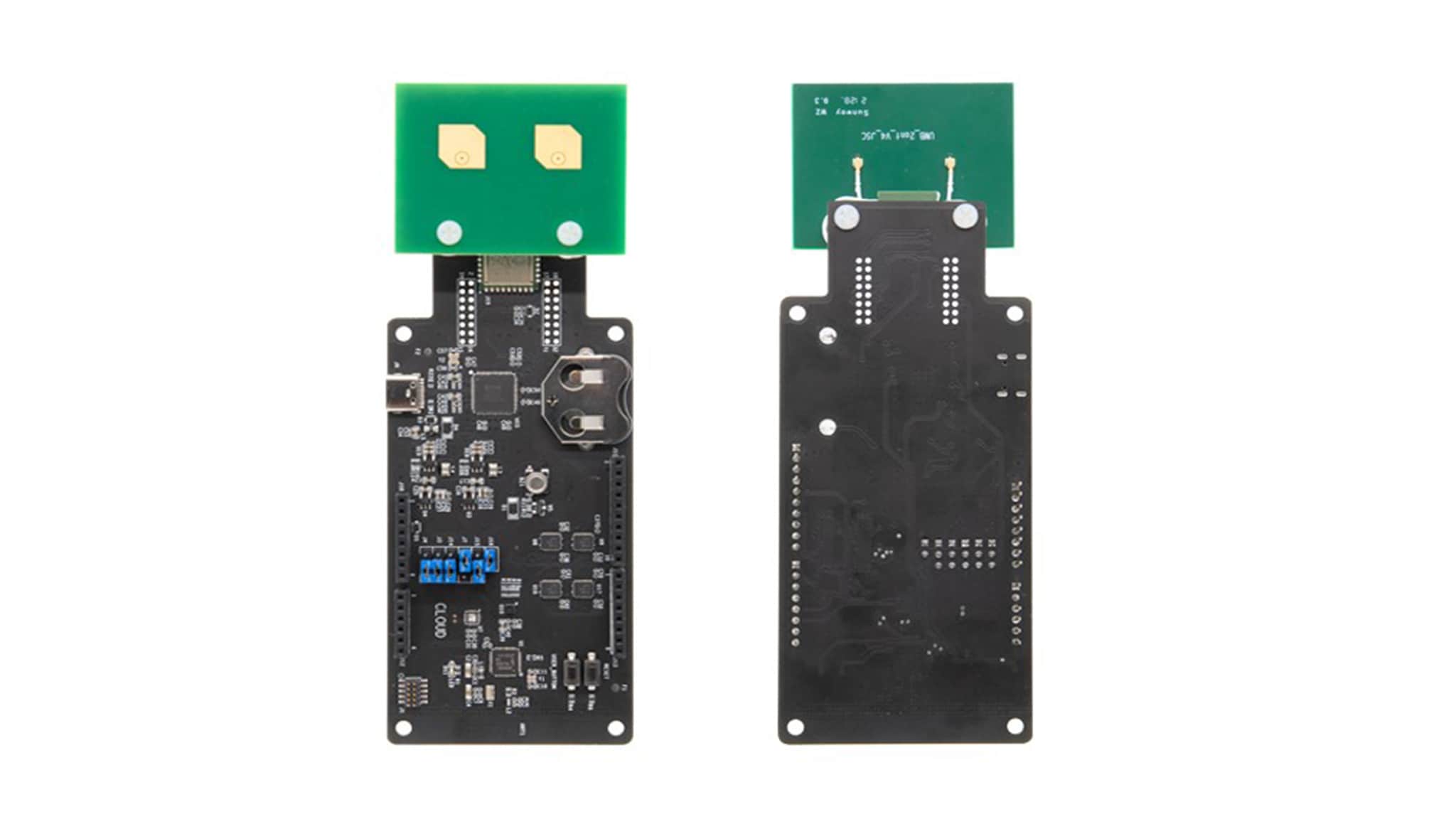

Secure Ultra-Wideband (UWB)

Multiprotocol MCUs

Wi-Fi® + Bluetooth®

Processors and Microcontrollers

KL Series Cortex-M0+

LPC5500 Cortex-M33

Security and Authentication

Authentication

Features

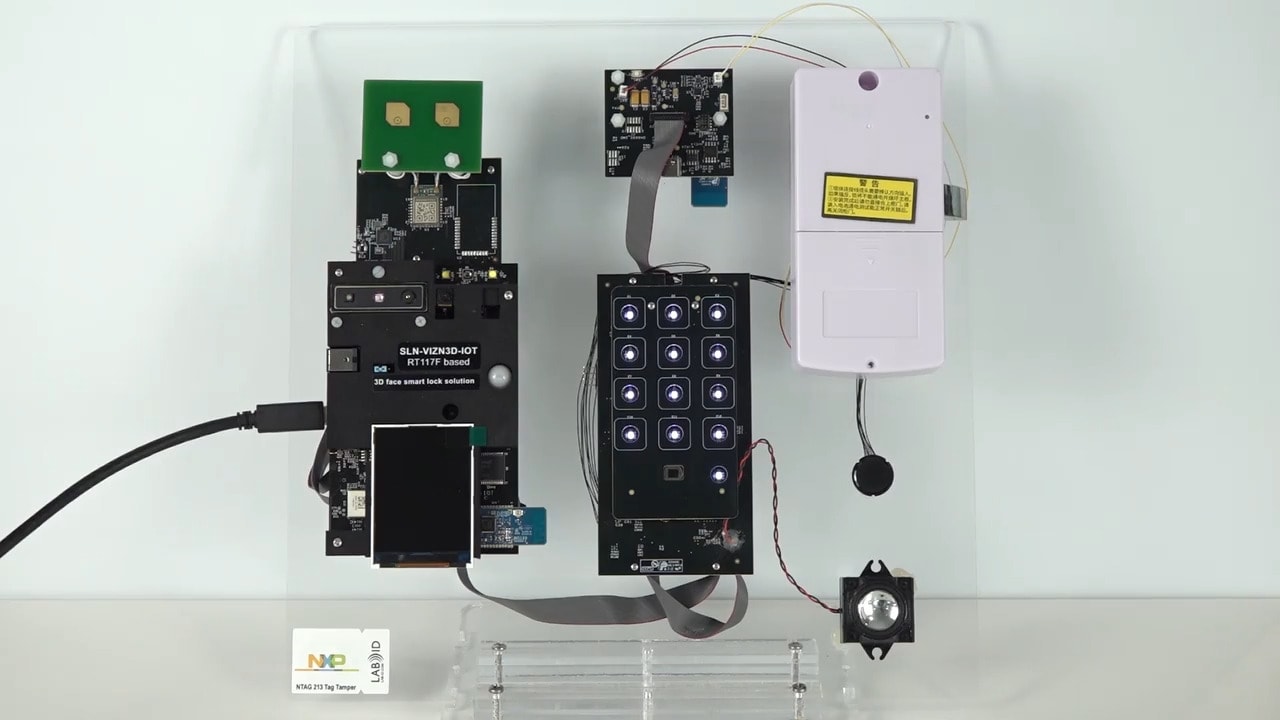

The Main board

  • The board based on LPC55S69 acts as a host MCU in the Smart Access platform

The Wireless board

  • The wireless board supports Matter control, IEEE802.15.4 mesh network protocols, Zigbee and Thread as well as Bluetooth Low Energy 5.0.

The PINPAD Board

  • The PINPAD board has 13 touch pads and an NFC antenna

The SLN-VIZN3D-IOT Kit

The FaceCV Board

  • The FaceCV board is a conversion board for SLN-VIZN3D-IOT kit, does not only connect the main board and SLN-VIZN3D-IOT kit but also provides UWB wireless control

Battery Case and Lock

  • The battery box that can hold 4x1.5V batteries
