KITPT2000FRDM6C: PT2000 Evaluation Kit with KL25Z for 4/6 Cylinder

Overview

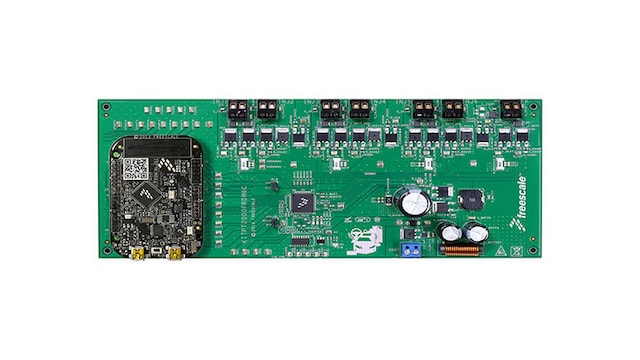

The KITPT2000FRDM6C Evaluation Board (EVB) allows you to exercise all the functions of the PT2000 direct injection pre-driver circuit. A PC communicates through USB to the EVB through a freedom board FRDM-KL25Z used as a SPIdongle. The NXP^® SPIGen (version 7.0 and above) program provides the user interface to the PT2000 SPI port and allows the user to program the Code RAM and Data Registers, send commands to the IC and receive status from the IC.

MoreLess

Specifications

Supported Devices

Power Management

PT2000 : Programmable Solenoid Controller Gate Driver

MoreLess

Technical and Functional Specifications

KITPT2000FRDM6C	PT2000 Programmable Solenoid Pre-Driver Circuit FRDM-KL25Z for SPI communication and IO control Power-conditioning circuitry External MOSFETs used to control 4/6 injectors and 1 fuel pump +12 V VBAT supply provides the power to the two internal voltage regulators, VCCP and VCCP2.5 DC-to-DC control
PT2000	Battery voltage range, 5.5 < VBATT < 72 V Predrive operating voltage up to 72 V High side/low side predrive PWM capability up to 100 KHz All predrivers have four selectable slew rates Twelve selectable, predefined VDS/VSRC monitoring thresholds Encryption for microcode protection Integrated 1.0 MHz back-up clock End of injection detection

Buy

KITPT2000FRDM6C ^{No Longer Manufactured}
KITPT2000FRDM6C
- KITPT2000FRDM6C Hardware
- FRDM-KL25Z Hardware (Pre-Programmed)
- Cable, USB A-M to B-M mini (2)
- Quick Reference Guide

- KITPT2000FRDM6C
- 1 @ US
- $325.00

Design Resources

Get Started

Get Started with the KITPT2000FRDM6C

User's Guide

Everything you need to get started with the KITPT2000FRDM6C Evaluation Board

KTPT2000FRDM6CUG, KITPT2000FRDM6C Evaluation Board - User’s Guide^{(REV
2.0
)}
- 3.8 MB
- KTPT2000FRDM6CUG
- [ English ]
PT2000SWUG, MC33PT2000 Programming Guide and Instruction Set - User’s Guide^{(REV
1.0
)}
- 2.6 MB
- PT2000SWUG
- [ English ]
PT2000-IDEUG, MC33PT2000 Developer Studio User’s Guide - User’s Guide^{(REV
2.0
)}
- 1.1 MB
- PT2000-IDEUG
- [ English ]

Documents

Data Sheet ( 1 )

MC33PT2000, Programmable Solenoid Controller - Data sheet^{(REV
12.0
)}

The PT2000 is a SMARTMOS programmable gate driver IC for precision solenoid control applications, which makes the component very flexible and relieves the main microcontroller from the heavy task of the actuator control.
- PDF
- 3.3 MB
- 16 Jan 2019
- MC33PT2000
- [ English ]

User Guide ( 3 )

PT2000SWUG, MC33PT2000 Programming Guide and Instruction Set - User’s Guide^{(REV
1.0
)}

This programming guide relates to the PT2000 Programmable Solenoid Controller.
- PDF
- 2.6 MB
- 04 Nov 2015
- PT2000SWUG
- [ English ]
KTPT2000FRDM6CUG, KITPT2000FRDM6C Evaluation Board - User’s Guide^{(REV
2.0
)}

The KITPT2000FRDM6C uses the Freedom board KL25Z to communicate with the MC33PT2000 through the SPI to setup registers and flash CRAM and DRAM.
- PDF
- 3.8 MB
- 04 Jun 2015
- KTPT2000FRDM6CUG
- [ English ]
PT2000-IDEUG, MC33PT2000 Developer Studio User’s Guide - User’s Guide^{(REV
2.0
)}

MC33PT2000 Developer Studio is a Windows application created to streamline the development of microcode for the MC33PT2000 Programmable Solenoid Controller.development of micro code for the MC33816 Programmable Solenoid Controller.
- PDF
- 1.1 MB
- 06 Oct 2015
- PT2000-IDEUG
- [ English ]

Design Resources

Design Tools & Files ( 1 )

Models ( 1 )

Design Simulator Environment for PT2000 PSC - Standard

PT2000 programmable solenoid controller (PSC) design simulator environment - Standard

Buy Options

Software

Embedded Software ( 3 )

BSP, Drivers and Middleware ( 1 )

KITPT2000-KL25Z Evaluation/Development Boards and Systems^{(REV
1.1
)}
- ZIP
- 28.4 kB
- 2015-10-05 00:00:00
- KITPT2000-KL25Z-EVBS
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

Libraries ( 2 )

KITPT20000FRDM6C Software Files for Peak and Hold with Diagnostics and DCDC^{(REV
2.1
)}

KITPT2000FRDM6C IDE Project including register settings and microcode to control 6 injectors, a DCDC at 65V and with automatic and idle diagnostics enabled (AN5186)
- ZIP
- 87.0 kB
- 2016-01-29 00:00:00
- KITPT2000FRDM6C-SW-FILES-LIB
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
KITPT20000FRDM6C Software Files for Peak and Hold and DCDC^{(REV
2.1
)}

KITPT2000FRDM6C IDE Project including register settings and a basic microcode to control 6 injectors with Peak and Hold, a DCDC at 65V.
- ZIP
- 48.2 kB
- 2016-01-28 00:00:00
- MC33PT2000-SW-FILES-LIB
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

Development Software ( 3 )

IDE and Build Tools ( 1 )

Developer Studio for PT2000 Programmable Solenoid Controller

The PT2000 Developer Studio is a Windows application for the development of micro code for the MC33PT2000 Programmable Solenoid Controller.

Download Options

Components and Modules ( 2 )

SPI Generator (SPIGen) Software

SPIGen is a fully customizable SPI generator software package, which can easily adapt to a wide variety of SPI protocol specifications.

Download Options
PT2000 SPIGEN Configuration File^{(REV
1.0
)}
- SPI
- 5.1 kB
- 2015-04-06 00:00:00
- KITPT2000AESW-EVBS
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
