BC3770, Battery Charger Board with KL25Z

FRDM-BC3770-EVM

Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Products

No Longer Manufactured

Features

General Specifications

  • A BC3770 highly integrated synchronous switch-mode chargers, featuring integrated OVP and Power FETs
  • A FRDM-KL25Z for SPI communication and IO control
  • Operate as a boost regulator for USB-OTG function via either I2C command or an external pin from the host/processor
  • The BC3770 is a fully programmable switching charger with dual-path output for single-cell Li-Ion and Li-Polymer battery. This dual-path output allows mobile applications with fully discharged battery or dead battery to boot up the system

Buy Options

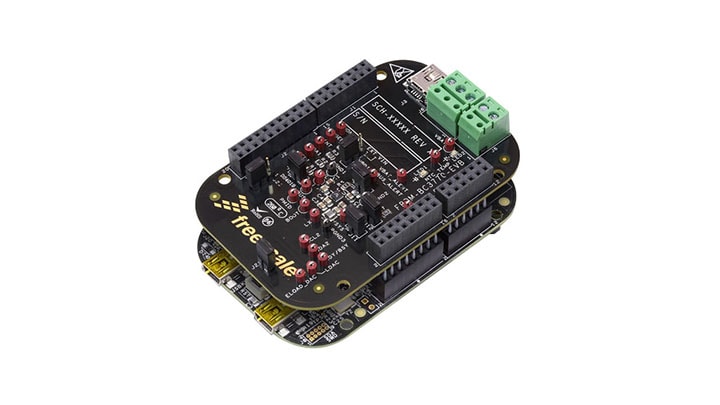

FRDM-BC3770-EVM-Image

Click to expand

  • FRDM-BC3770-EVM

  • Freedom Expansion Kit, BC3770, Programmable switching charger with dual-path output for single-cell.

  • $67.62 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
