BC3770, Freedom Battery Charger Expansion Board without KL25Z

FRDM-BC3770-EVB

Roll over image to zoom in

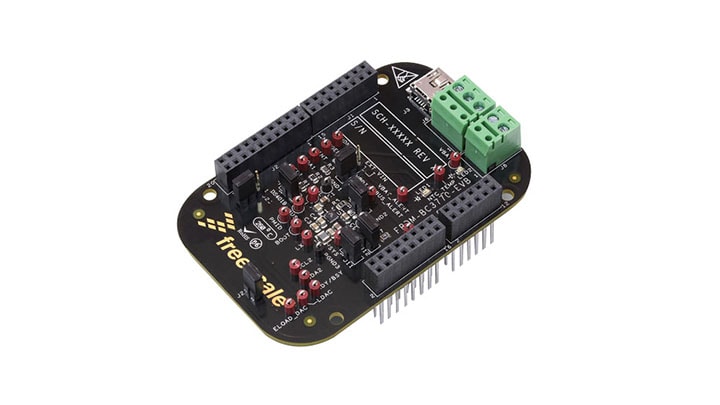

The Freedom expansion board FRDM-BC3770-EVB is a fully programmable switching charger with dual-path output for single-cell Li-Ion and Li-Polymer battery that works with a FRDM-KL25Z (sold separately).

The dual-path output allows mobile applications with fully discharged battery or dead battery to boot up the system. High efficiency and switch-mode operation of the BC3770 reduces heat dissipation and allow for higher current capability for a given package size. The BC3770 features single input with a 20 V max input and charges the battery with the current up to 2 A. The charging parameters and operating modes are fully programmable over an I²C Interface that operates up to 400 kHz.

Processor Expert® software for BC3770 Battery Charger including example projects

Product Details

Select a section:

Supported Devices

Products

No Longer Manufactured

  • BC3770: 2 A Switch-Mode Li-ion/Li-polymer Battery Charger

Features

General Specifications

  • A BC3770 highly integrated synchronous switch-mode chargers, featuring integrated OVP and Power FETs
  • Operate as a boost regulator for USB-OTG function via either I2C command or an external pin from the host/processor.
  • The BC3770 is a fully programmable switching charger with dual-path output for single-cell Li-Ion and Li-Polymer battery. This dual-path output allows mobile applications with fully discharged battery or dead battery to boot up the system.

Buy Options

  • FRDM-BC3770-EVB

  • Freedom Expansion Kit, BC3770, Programmable switching charger, dual-path output for single-cell Li Ion.

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $40.02 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
