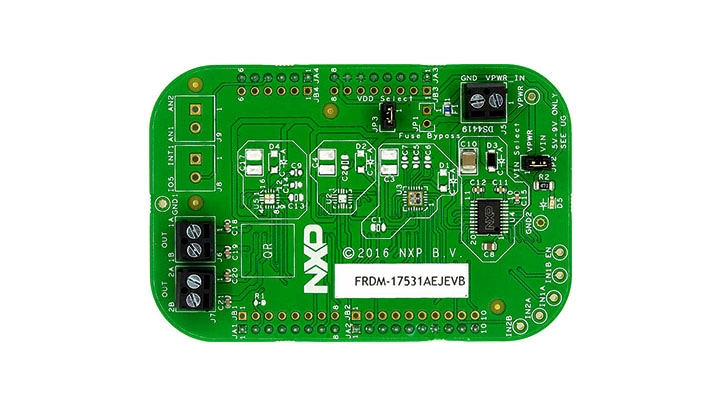

Freedom Expansion Board for MC17531AEJ Dual H-Bridge

FRDM-17531AEJEVB

Roll over image to zoom in

This Freedom evaluation board supports the MPC17531A two-channel, H-Bridge driver for single-stepper motor or two brushed DC motors. It provides a small, low-power, cost-effective evaluation and development system for quick application prototyping and demonstration of Kinetis® MCU families.

  • Offers an easy-to-use mass-storage device mode flash programmer, virtual serial port and classic programming and run-control capabilities.
  • Includes built-in shoot-through current protection and an undervoltage shutdown function
  • Lowers energy consumption and helps extend battery life
  • Efficiently drives many types of micromotors with low power dissipation
  • Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development

Product Details

Select a section:

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • MPC17531: Dual H-Bridge, Motor Driver, 2-8.6 V, 1.4 A, 200 kHz

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

General Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Fuse protected
  • Built in regulator for logic power supply
  • Board power is separate from host CPU power

Components

  • General-purpose LED driven from FRDM-KL25Z

Buy Options

FRDM-17531AEJEVB-Image

Click to expand

  • FRDM-17531AEJEVB

  • FRDM-17531AEJE.

    • FRDM-17531AEJEVB board
    • Quick start Guide
    • Connectors for FRDM attach boards
  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
