Freedom Expansion Board for MPC17511 H-Bridge, Brushed DC Motor Driver

FRDM-17511EVB

Roll over image to zoom in

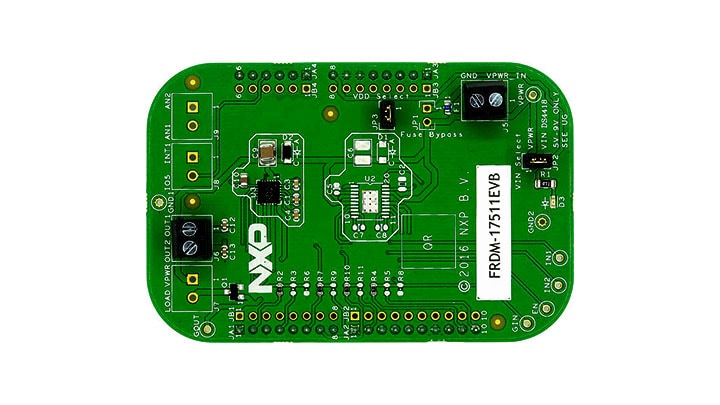

The FRDM-17511EPEVB Freedom evaluation board features the MPC17511—a monolithic H-Bridge designed to directly drive small-brushed DC-motors.

  • Drives various types of micro-motors with low loss
  • Contains an integrated charge pump and level shifter for gate drive voltages
  • Includes integrated shoot-through current protection circuit and undervoltage circuit detector to avoid malfunction.
  • Features four output control modes: Forward, Reverse, Brake, Tri-state (Open)
  • Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Power Management

BLDC, H-Bridge, Stepper

  • MPC17511: H-Bridge, Brushed DC Motor Driver, 2-6.8 V, 3.0 A, 200 kHz

Features

Connectivity

  • Screw terminals for motor leads and power connections
  • General-purpose Auxiliary output to drive additional load

Power Management

  • Built in regulator for logic power supply
  • Board power is separate from host CPU power
  • Fuse protected

User Components

  • General-purpose LED driven from FRDM-KL25Z

General Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)

Buy Options

FRDM-17511EVB-Image

Click to expand

  • FRDM-17511EVB

  • FRDM-17511EVB.

    • FRDM-17511EVB board
    • Quick start Guide
    • Connectors for FRDM attach boards
  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
