12-key Capacitive Touch Keypad Plug-In for the Tower System

TWRPI-KEYPAD

Roll over image to zoom in

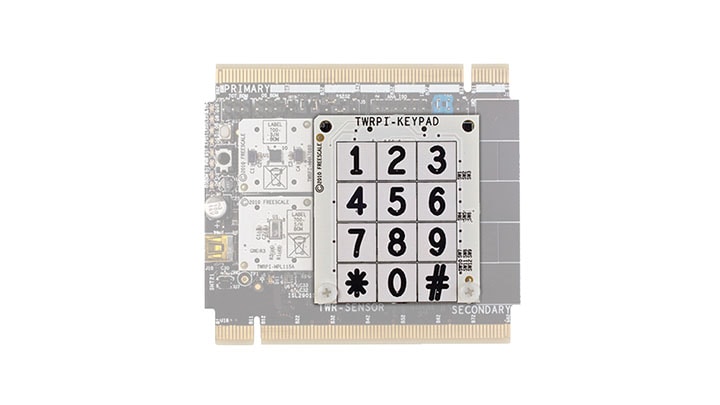

The TWRPI-KEYPAD capacitive touch keypad plug-in for the NXP® Tower® System lets you add keypad functionality to your embedded designs. This plug-in, or daughter card, is compatible with Tower System modules that feature touch pad Tower plug-in sockets. Simply place the TWRPI-KEYPAD onto a parent controller or peripheral module, and start prototyping quickly and easily. It's that simple and, quite literally, at your fingertips.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

K6x Ethernet

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

K7x Graphic LCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

Features

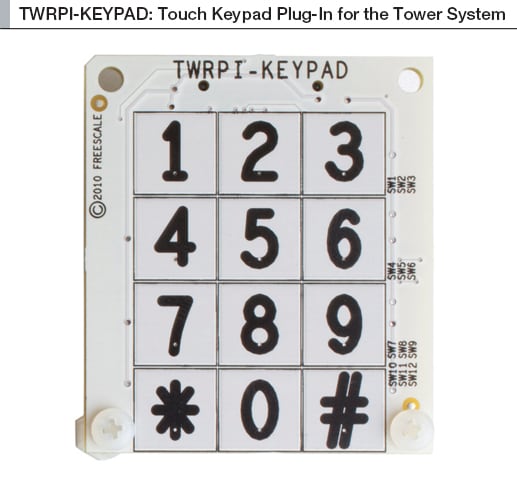

  • 12 discrete capacative electrodes
  • Electrodes are arranged in a 12-key numeric telephone-keypad layout
  • Supported by the TSS library
  • Compatible with Tower® System modules that feature Tower plug-in (TWRPI) sockets

Documentation

Quick reference to our documentation types.

Filters

1 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    TWRPI-KEYPAD - Schematics

    PDFRev AJan 19, 2010 00:00:0047.0 KBTWRPI-KEYPAD_SCH
    Download

Software

Filters

1 software file

  • Graphics, UI, and Human Machine Interface

    Touch Sensing Software Suite installer Version 3.0.1

    ZIPRev 3.0.1Sep 24, 2012 00:00:0031.6 MBTSSSW_3_0_1
    Sign in required
    Download
