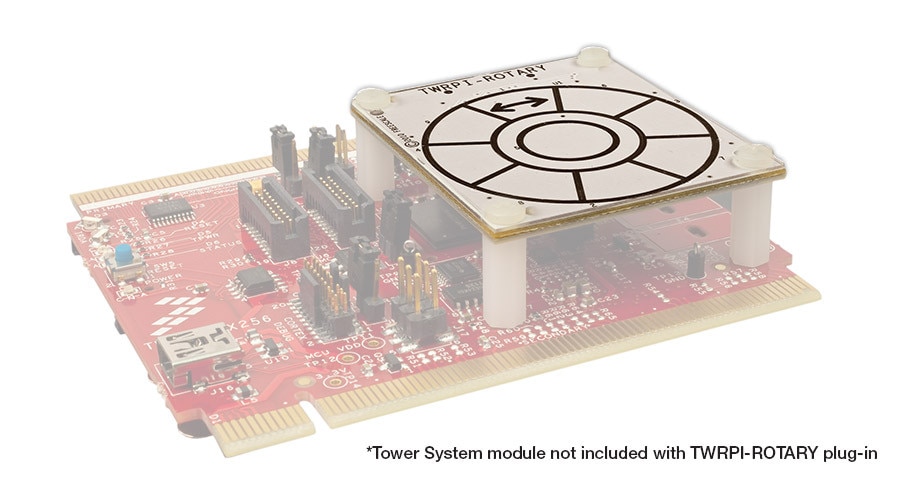

Capacitive Touch Rotary Plug-In for the Tower System

TWRPI-ROTARY

Roll over image to zoom in

Product Details

Select a section:

Features

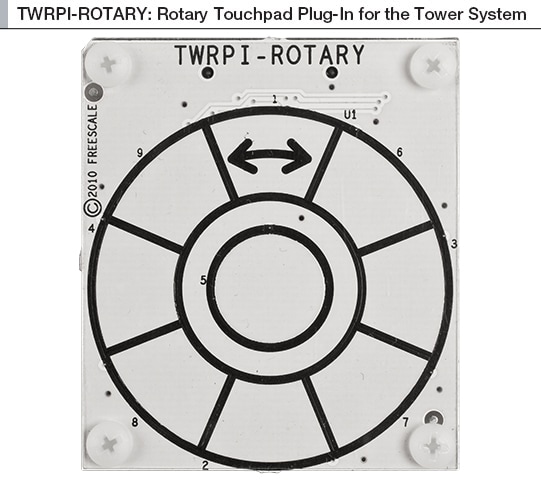

  • Discrete layout of rotary electrodes
  • Center selection electrode

Connectivity

  • Compatible with Tower® System modules that feature Tower plug-in (TWRPI) sockets

Support & Software

  • Software detection of directional rotation
  • Supported by the TSS library

Documentation

Quick reference to our documentation types.

1 documents

Design Resources

Select a section:

Design Files

1 design file

  • Printed Circuit Boards and Schematics

    TWRPI-ROTARY - Schematics

Software

1 software file

  • Graphics, UI, and Human Machine Interface

    Touch Sensing Software Suite installer Version 3.0.1
