Getting Started with the RD772BJBCANFDEVB Evaluation Board
Contents of this document
-
Out of the Box
-
Get Hardware
Sign in to save your progress. Don't have an account? Create one.
Purchase your HVBMS | Battery Junction Box (BJB)
1. Out of the Box
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page will guide you through the process of setting up and using the RD772BJBCANFDEVB board.
1.1 Kit Contents/Packing List
The RD772BJBCANFDEVB kit contents include:
- Assembled and tested evaluation board in an anti-static bag
- High-voltage measurement cables
- External thermistor connection cable
- Power supply and CAN communication cable
1.2 Lethal Voltage and Fire Ignition Hazard
WARNING
Lethal voltage and fire ignition hazard
The non-insulated high voltages that are present when operating this product, constitute a risk of electric shock, personal injury, death and/ or ignition of fire. This product is intended for evaluation purposes only. It shall be operated in a designated test area by personnel qualified according to local requirements and labor laws to work with non- insulated mains voltages and high-voltage circuits. This product shall never be operated unattended.
2. Get Hardware
2.1 Board Features
- Five inputs high-voltage positive measurement up to 500 V
- Two inputs high-voltage negative measurement down to −500 V
- Single shunt for current measurement ±1500 A
- Shunt temperature measurement from −40 °C to +105 °C
- Connection to the precharge resistor for temperature measurement
- Passive isolation resistance measurement between high-voltage and low-voltage domains
- Two EEPROMs for data and calibration data storage
- Controller Area Network (CAN) line followed by an isolated gateway for communication with other systems
- Additional galvanically isolated electrical transport protocol link (ETPL) for communication with other systems
2.2 Board Description
The RD772BJBCANFDEVB is a BJB reference design for high-voltage battery management systems. The solution features high-voltage, current and isolation resistance measurements. The RD772BJBCANFDEVB has a communication port using CAN protocol.
The RD772BJBCANFDEVB is supplied either with an isolated DC-DC from low-voltage domain (12 V) or directly from the high-voltage battery with a self-supply circuitry.

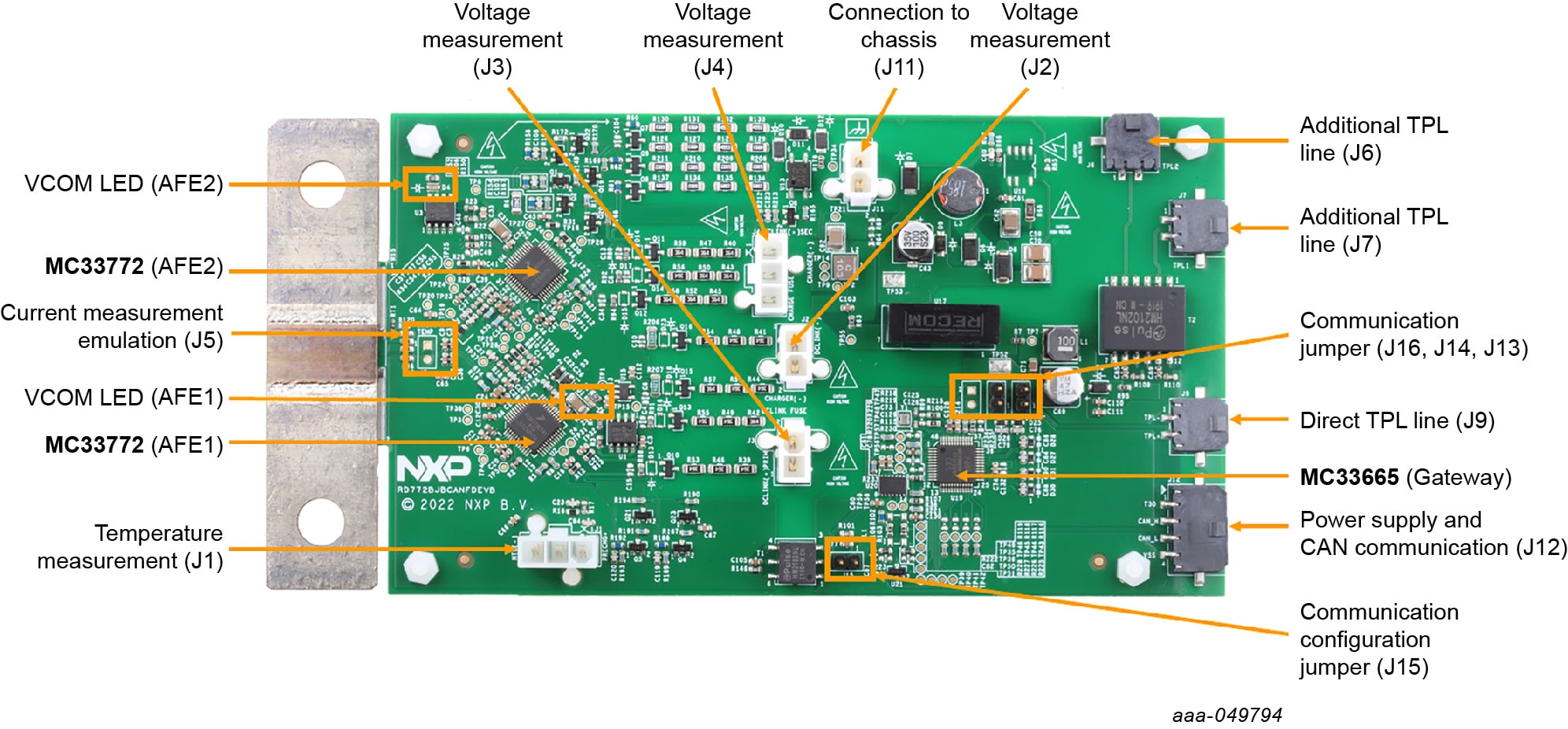

2.3 Board Components
Design Resources
Board Information
Additional References
In addition to our MC33772C, 6-Channel Li-Ion Battery Cell Controller IC you may also want to visit:
