Get Started

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost, and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the UJA1164A-EVB evaluation board.

1.1 Kit Contents/Packing List

The UJA1164A-EVB contents include:

Assembled and tested evaluation board in an anti-static bag

Mark as complete:1.1 Kit Contents/Packing List

1.2 Additional Hardware

In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.

Power supply with a 12 V DC source and a current limit capability of at least 1.0 A
A 5.0 V MCU board that contains at least one CAN/CANFD controller and one SPI master

Mark as complete:1.2 Additional Hardware

1.3 User Manual

Refer to UM11379, UJA116xA evaluation boards for additional details on the featured components and board configuration.

Mark as complete:1.3 User Manual

NextGet to Know the Hardware

Get to Know the Hardware

2.1 Board Description

The UJA1164A-EVB evaluation boards are designed to facilitate the testing and evaluation of UJA1164A product features in a variety of microcontroller IO interface environments. All MCU interface signals can be accessed in two ways: at a header row on the top side and also at header rows on the bottom side that can be plugged directly into many NXP MCU evaluation boards.

The UJA1164A-EVB evaluation boards are designed to be compatible with the S32K1xx evaluation board series from NXP and to support the use of standard software development tools and drivers.

Mark as complete:2.1 Board Description

2.2 Board Components

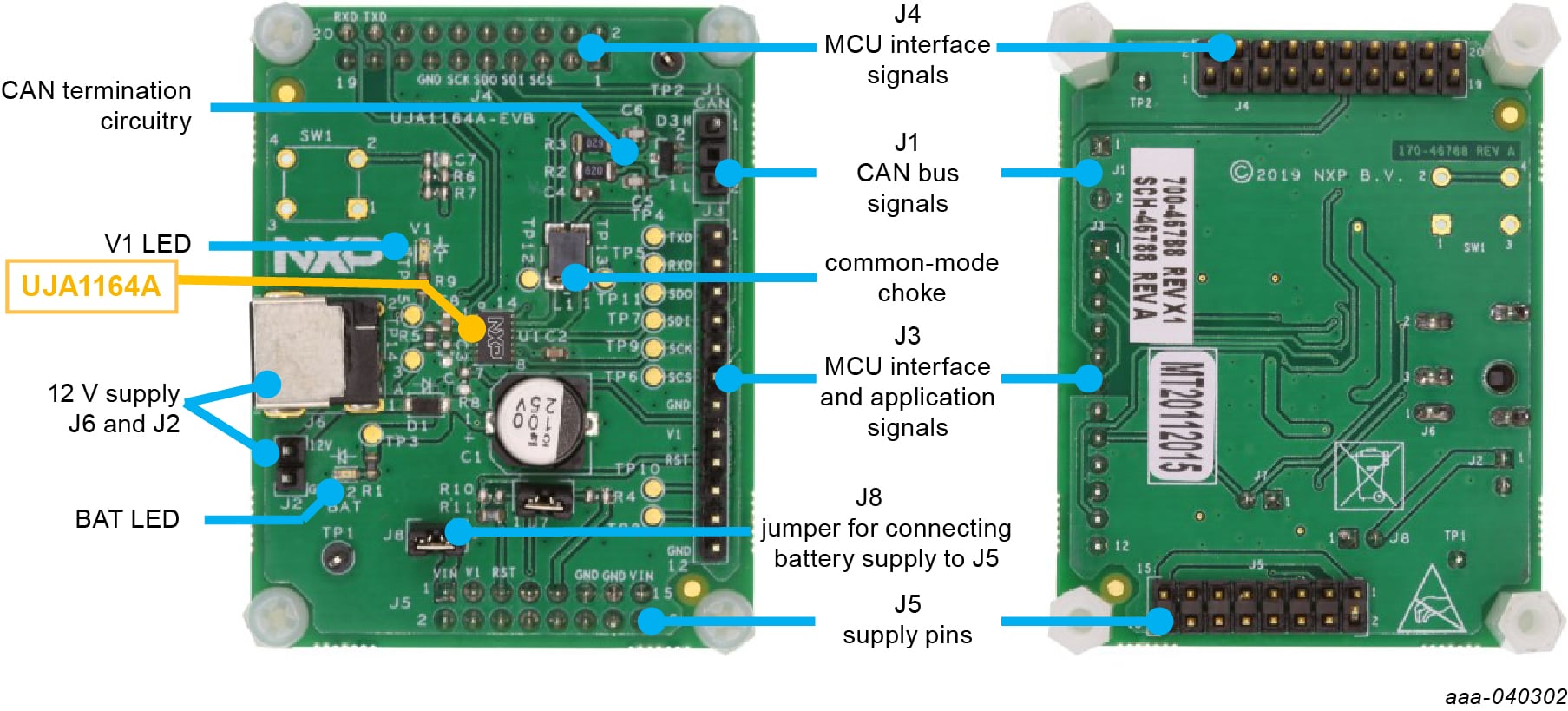

Overview of the PCT2075DP-ARD evaluation board

Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA1164A functionality are included. All boards contain circuitry for reverse polarity protected battery supply, BAT and V1 signal status LEDs, and CAN bus termination. The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals.

Mark as complete:2.2 Board Components

PreviousGet Started

NextConfigure the Hardware

Configure the Hardware

To connect the UJA1164A-EVB to a CAN network, complete the following procedure.

The following conditions must be met before powering up the system with a 12 V supply:

Connect boards in the ECU to a common GND
Connect SPI pins to the MCU SPI master:
- SDO (J3-03, J4-09) → MISO
- SDI (J3-04, J4-07) → MOSI
- SCK (J3-05, J4-11) → SCK
- SCSN (J3-06, J4-05) → CS
Connect TXD/RXD (J3-01/J3-02, J4-18/J4-20) pins to the MCU CAN controller TXD/RXD pins
Connect RSTN (J9-09/J5-05) to the MCU reset pin
Connect CANH and CANL (J1-01/J1-02) to the CAN bus twisted-pair cables
Connect V1(J3-08, J5-03) to the MCU supply unit

Once the above steps have been completed, the ECU/EVB can be powered up using an external battery supply. The UJA1164A-EVB starts up in Forced Normal mode (if MTP is not configured) or Standby mode (if MTP configured), awaiting commands from the MCU via the SPI interface.

PreviousGet to Know the Hardware

NextDesign Resources
