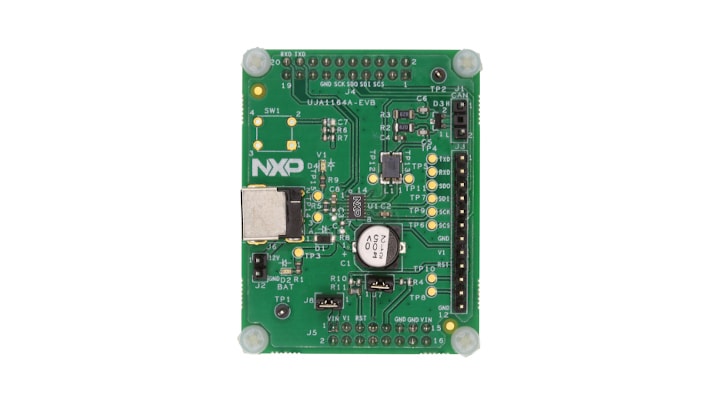

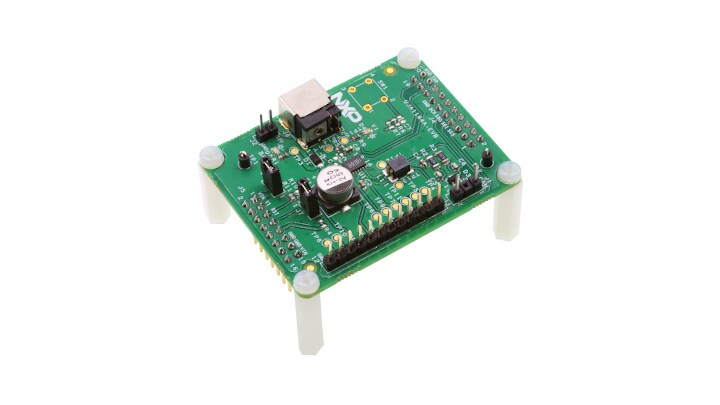

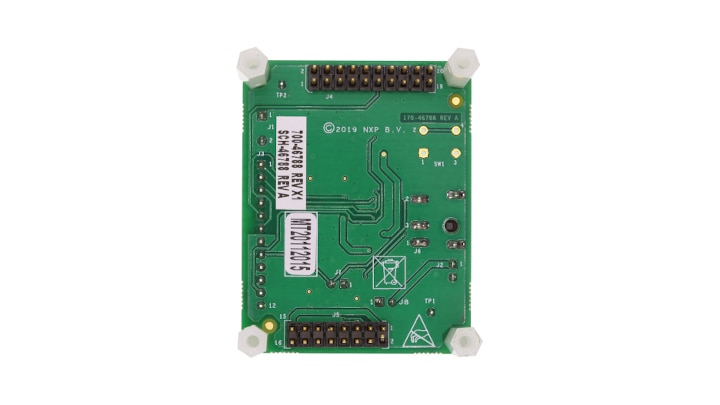

UJA1164A Evaluation Board

UJA1164A-EVB
Active

Roll over image to zoom in

The UJA1164A-EVB Evaluation Board is a supportive tool to develop system solutions using the UJA1164A High-Speed CAN System Basis Chip. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

Supported Devices

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • UJA1164ATK: Mini High-Speed CAN System Basis Chip with Standby Mode and Watchdog

Features

Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

Buy Options

UJA1164A-EVB-Image

Click to expand

UJA1164A-EVB
Active

UJA1164A Evaluation Board.

    $81.40 USD
    In Stock :20

    Normally ships 1-2 business days

    ADD TO CART
