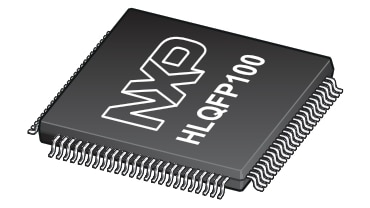

SOT2229-1: HLQFP100

Overview

HLQFP100, plastic, thermal enhanced low profile quad flat package; 100 terminals; 0.5 mm pitch; 14 mm x 14 mm x 1.5 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT2229-1	HLQFP100	surface mount	quad	HLQFP	14 x 14 x 1.5	100	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA02131D		2024-07-12

Products

Part	Description	Quick access
MCXN547VKLT		View parametrics
MCXN247VKLT		View parametrics
MCXN236VKLT	MCX N23 Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security, 100 QFP	View parametrics
MCXN546VKLT		View parametrics
MCXN235VKLT	MCX N23 Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security, 100 QFP	View parametrics
MCXN946VKLT		View parametrics
MCXN526VKLT		View parametrics
MCXN527VKLT		View parametrics
MCXN537VKLT		View parametrics
MCXN947VKLT		View parametrics
MCXN536VKLT		View parametrics
