OM13318
Active -
NVT2002DP Demo Board.
Compact List

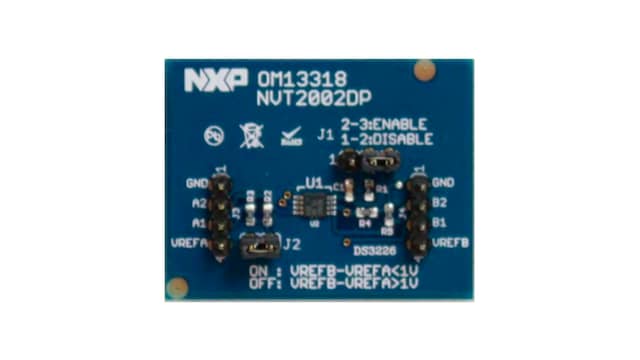

NVT2002DP Demo Board
The NVT2001GM (OM13315) and NVT2002DP (OM13318) demo boards are designed to evaluate the NXP® 1-channel or 2-channel bi-directional voltage level translators. The demo boards interface between device I/Os operating at different voltage levels. Since the NVT2001GM and NVT2002DP devices are passive devices, pull-up resistors may be needed depending on the I/O interface type (totem pole or open-drain), a difference in translation voltage, and the translation direction (high to low-voltage, low to high-voltage, or bi-directional). The NVT2001GM and NVT2002DP devices allow translations between any voltages from 1.0 V to 5.5 V.
Product Details
Supported Devices
Analog and Mixed Signal
Voltage Level Translators
- NVT2001_NVT2002: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications
Features
Key Features
- High-impedance An and Bn pins for EN = LOW
- Lock-up free operation
- Flow through pinout for ease of printed-circuit board trace routing
- Less than 1.5 ns maximum propagation delay
- Low 3.5 Ω
- ON-state connection between input and output ports provides less signal distortion
Power Management
- 5 V tolerant I/O ports to support mixed-mode signal operation
- Provides bidirectional voltage translation with no direction pin
- ESD protection exceeds 4 kV HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
-
Allows voltage level translation between
- 1.0 V Vref(A) and 1.8 V, 2.5 V, 3.3 V, or 5 V Vref(B)
- 1.2 V Vref(A) and 1.8 V, 2.5 V, 3.3 V, or 5 V Vref(B)
- 1.8 V Vref(A) and 3.3 V or 5 V Vref(B)
- 2.5 V Vref(A) and 5 V Vref(B)
- 3.3 V Vref(A) and 5 V Vref(B)
