OM13317
Active -
NVT2008PW Demo Board.
Compact List
NVT2008PW Demo Board

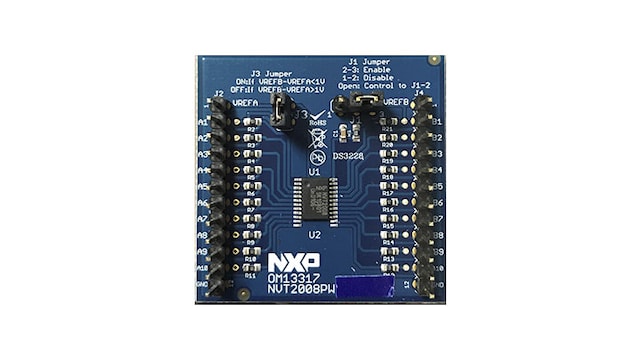

The NVT2008PW (OM13317) and NVT2010PW (OM13324) demo boards are designed to let customers evaluate the NXP 8-channel and 10-channel bi-directional voltage level translators. The demo boards interface between device I/Os operating at different voltage levels. Since the NVT2008PW and NVT2010PW devices are passive devices, pull-up resistors may be needed depending on the I/O interface type (totem pole or open-drain), difference in translation voltage, and the translation direction (high-to-low voltage, low-to-high voltage, or bidirectional). The NVT2008PW and NVT2010PW devices allow translations between any voltages from 1.0 V to 5.5 V.
Product Details
Supported Devices
Analog and Mixed Signal
Voltage Level Translators
- NVT2001_NVT2002: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications
- NVT2008_NVT2010: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications
Features
Connectivity
- 5 V tolerant I/O ports to support mixed-mode signal operation
Power Management
- Provides bidirectional voltage translation with no direction pin
- ESD protection exceeds 4 kV HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
-
Allows voltage level translation between
- 1.0 V Vref(A) and 1.8 V, 2.5 V, 3.3 V, or 5 V Vref(B)
- 1.2 V Vref(A) and 1.8 V, 2.5 V, 3.3 V, or 5 V Vref(B)
- 1.8 V Vref(A) and 3.3 V or 5 V Vref(B)
- 2.5 V Vref(A) and 5 V Vref(B)
- 3.3 V Vref(A) and 5 V Vref(B)
Key Features
- Less than 1.5 ns maximum propagation delay
-
Low 3.5
- ON-state connection between input and output ports provides less signal distortion
- High-impedance An and Bn pins for EN = LOW
- Lock-up free operation
- Flow through pinout for ease of printed-circuit board trace routing
Packages Offered
- TSSOP20
- DHVQFN20
- TSSOP24
- DHVQFN24
- HVQFN24
