NVT2010PW Demo Board

OM13324
Active

Roll over image to zoom in

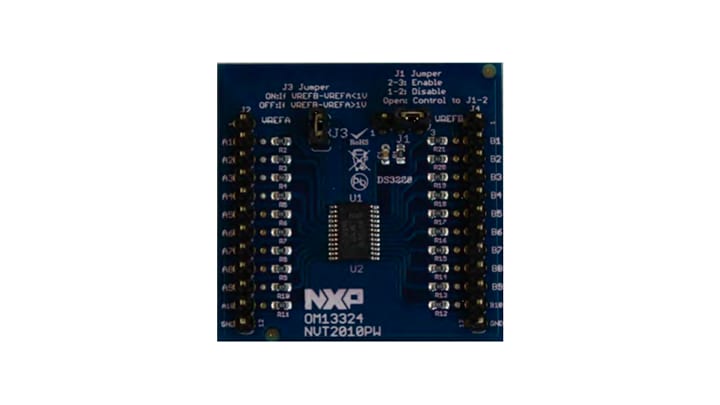

The NVT2008PW (OM13317) and NVT2010PW (OM13324) demo boards are designed to let customers evaluate the NXP® 8-channel and 10-channel bi-directional voltage level translators. The demo boards interface between device I/Os operating at different voltage levels. Since the NVT2008PW and NVT2010PW devices are passive devices, pull-up resistors may be needed depending on the I/O interface type (totem pole or open-drain), a difference in translation voltage, and the translation direction (high to low-voltage, low to high-voltage, or bi-directional). The NVT2008PW and NVT2010PW devices allow translations between any voltages from 1.0 V to 5.5 V.

Product Details

Supported Devices

Analog and Mixed Signal

Voltage Level Translators

  • NVT2008_NVT2010: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications

Features

Key Features

  • High-impedance An and Bn pins for EN = LOW
  • Lock-up free operation
  • Flow through pinout for ease of printed-circuit board trace routing
  • Less than 1.5 ns maximum propagation delay
  • Low 3.5 Ω: ON-state connection between input and output ports provides less signal distortion

Power Management

  • 5 V tolerant I/O ports to support mixed-mode signal operation
  • Provides bidirectional voltage translation with no direction pin
  • ESD protection exceeds 4 kV HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
  • Allows voltage level translation between
    • 1.0 V Vref (A) and 1.8 V, 2.5 V, 3.3 V, or 5 V Vref (B)
    • 1.2 V Vref (A) and 1.8 V, 2.5 V, 3.3 V, or 5 V Vref (B)
    • 1.8 V Vref (A) and 3.3 V or 5 V Vref (B)
    • 2.5 V Vref (A) and 5 V Vref (B)
    • 3.3 V Vref (A) and 5 V Vref (B)

Packages Offered

  • TSSOP20
  • DHVQFN20
  • TSSOP24
  • DHVQFN24
  • HVQFN24
