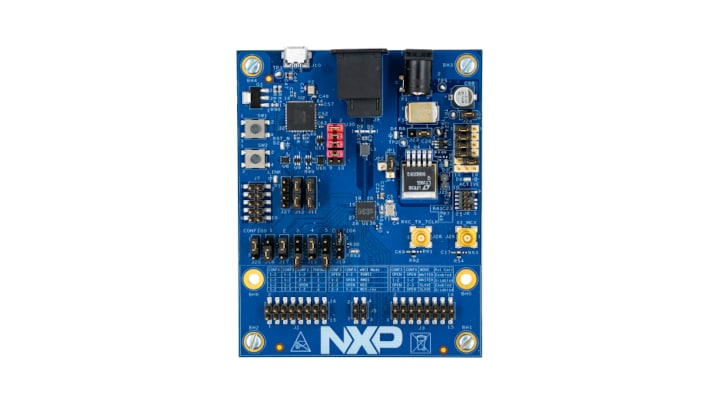

TJA1103 SABRE Development Board

TJA1103SDB

Roll over image to zoom in

The TJA1103SDB SABRE development board is a purpose-built tool to evaluate the xMII data path in an application context together with a NXP processor and is specifically designed for software engineering tasks. To enable quick application prototyping, various NXP system development boards feature the common SABRE connector; for example, our latest S32K3 general-purpose MCU, S32G vehicle network processors and i.MX 8 processors.

Product Details

Select a section:

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1103: ASIL B Compliant 100BASE-T1 Ethernet PHY

Features

Connectivity

  • 100BASE-T1 Automotive Ethernet

General Specifications

  • Simple Automotive Ethernet system setup for prototype applications
  • Quick functional evaluation of TJA1103

Microcontroller

  • SABRE Adapter for connection to S32K3, S32G and I.MX8+ boards
    • 100BASE-T1 connectivity at ECU prototyping stage
    • Simple chip configuration
    • Chip status report via onboard LEDs

Buy Options

TJA1103SDB-Image

Click to expand

  • TJA1103SDB

  • SABRE Development Board for TJA1103 100BASE-T1 PHY.

  • Each order will be reviewed prior to being fulfilled.
    We apologize for any experienced inconvenience as a result of this approval process.

    Kit Contains:

    • 1 x TJA1103 SABRE development board
    • 1 x Unshielded twisted Pair (UTP) cable (automotive grade)

    Note: An NDA is required in order to access the TJA1103SDB documentation.

  • $182.74 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
