DisplayPort Linear Redriver Evaluation Board for PTN3816

PTN3816EVM

Roll over image to zoom in

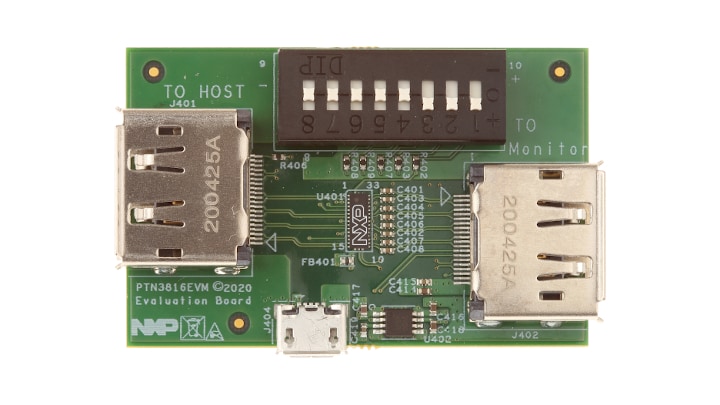

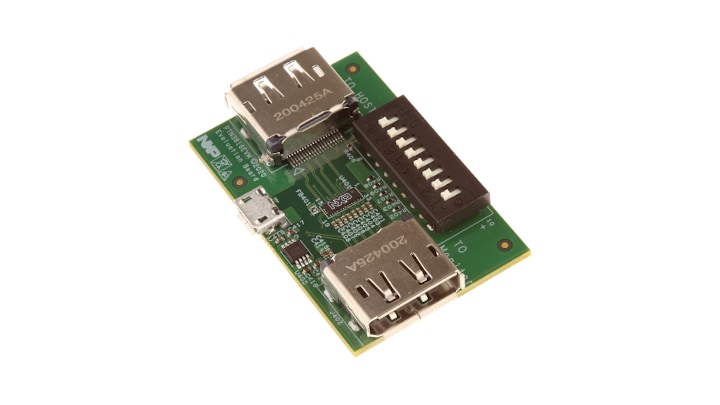

PTN3816EVM is the PTN3816 evaluation kit with 2 full-size DisplayPort connectors that can be connected to the downstream side (host/GPU) and the up stream side (monitor/docking station). There is no software required for this evaluation kit.

Product Details

Select a section:

Supported Devices

Interfaces

High-Speed Signal Conditioners

  • PTN3816: 20 Gbps Per Lane, 4-Lane DisplayPort Linear Redriver

Features

Features

  • Supporting up to UHBR20 link rates
  • DP AUX monitoring for link configuration and power management
  • Implements HPD for deep power saving
  • Configurable Rx equalizer gain
  • Configurable output swing linearity control

Buy Options

PTN3816EVM-Image

Click to expand

  • PTN3816EVM

  • DisplayPort Linear Redriver Evaluation Board for PTN3816.

  • Kit Contains

    PTN3816EVM - DisplayPort linear redriver evaluation board

    • Assembled and tested evaluation board in an anti-static bag
    • Quick Start Guide
  • $101.75 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 16
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    SPF-47486 Schematics

    PDFRev A0May 20, 2020 13:12:00201.8 KBSPF-47486
    Sign in required
    Download
  • Printed Circuit Boards and Schematics

    PTN3816EVM Design Files

    ZIPRev 1.0Jun 17, 2021 14:40:003.0 MBPTN3816EVM-DESIGN-FILES
    Sign in required
    Download
