MW6IC1940N|1920-2000 MHz, 40 W, 28 V

Overview

Archived content is no longer updated and is made available for historical reference only.

MW6IC1940NBR1: Active.

MW6IC1940GNBR1 removed from active portfolio. View replacement parts via Part Number Search.

The MW6IC1940NBR1 and MW6IC1940GNBR1 wideband integrated circuits are designed with on-chip matching that make them usable from 1920 to 2000 MHz. This multi-stage structure is rated for 26 to 32 Volt operation and covers all typical cellular base station modulation formats.

MoreLess

Features

Final Application

Typical 2–Carrier W–CDMA Performance: V_DD = 28 Volts, I_DQ1 = 200 mA, I_DQ2 = 440 mA, Pout = 4.5 Watts Avg., f = 1922.5 MHz, Channel Bandwidth = 3.84 MHz, PAR = 8.5 dB @ 0.01% Probability on CCDF.
Power Gain: 28.5 dB

Power Added Efficiency: 13.5%

IM3 @ 10 MHz Offset: –43 dBc in 3.84 MHz Bandwidth

ACPR @ 5 MHz Offset: –46 dBc in 3.84 MHz Bandwidth

Driver Applications

Typical 2–Carrier W–CDMA Performance: V_DD = 28 Volts, I_DQ1 = 200 mA, I_DQ2 = 350 mA, Pout = 26 dBm, Full Frequency Band (1920–2000 MHz), Channel Bandwidth = 3.84 MHz, PAR = 8.5 dB @ 0.01% Probability on CCDF.

Power Gain: 27 dB

IM3 @ 10 MHz Offset: –59 dBc in 3.84 MHz Bandwidth

ACPR @ 5 MHz Offset: –62 dBc in 3.84 MHz Bandwidth
Capable of Handling 3:1 VSWR, @ 28 Vdc, 1960 MHz, 40 Watts CW Output Power
Stable into a 3:1 VSWR. All Spurs Below –60 dBc @ 100 mW to 20 W CW Pout.
Characterized with Series Equivalent Large–Signal Impedance Parameters and Common Source Scattering Parameters
On-Chip Matching (50 Ohm Input, DC Blocked, >3 Ohm Output)
Integrated Quiescent Current Temperature Compensation with Enable/Disable Function
Integrated ESD Protection
225°C Capable Plastic Package
Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications
RoHS Compliant
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

MoreLess

Features

Final Application

Typical 2–Carrier W–CDMA Performance: V_DD = 28 Volts, I_DQ1 = 200 mA, I_DQ2 = 440 mA, Pout = 4.5 Watts Avg., f = 1922.5 MHz, Channel Bandwidth = 3.84 MHz, PAR = 8.5 dB @ 0.01% Probability on CCDF.
Power Gain: 28.5 dB

Power Added Efficiency: 13.5%

IM3 @ 10 MHz Offset: –43 dBc in 3.84 MHz Bandwidth

ACPR @ 5 MHz Offset: –46 dBc in 3.84 MHz Bandwidth

Driver Applications

Typical 2–Carrier W–CDMA Performance: V_DD = 28 Volts, I_DQ1 = 200 mA, I_DQ2 = 350 mA, Pout = 26 dBm, Full Frequency Band (1920–2000 MHz), Channel Bandwidth = 3.84 MHz, PAR = 8.5 dB @ 0.01% Probability on CCDF.

Power Gain: 27 dB

IM3 @ 10 MHz Offset: –59 dBc in 3.84 MHz Bandwidth

ACPR @ 5 MHz Offset: –62 dBc in 3.84 MHz Bandwidth
Capable of Handling 3:1 VSWR, @ 28 Vdc, 1960 MHz, 40 Watts CW Output Power
Stable into a 3:1 VSWR. All Spurs Below –60 dBc @ 100 mW to 20 W CW Pout.
Characterized with Series Equivalent Large–Signal Impedance Parameters and Common Source Scattering Parameters
On-Chip Matching (50 Ohm Input, DC Blocked, >3 Ohm Output)
Integrated Quiescent Current Temperature Compensation with Enable/Disable Function
Integrated ESD Protection
225°C Capable Plastic Package
Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications
RoHS Compliant
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

Data Sheets

Application Notes

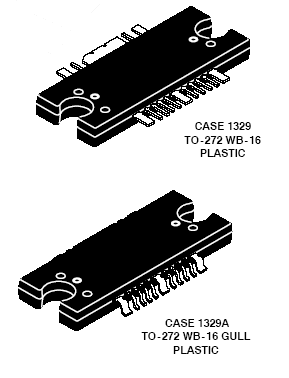

TO-272 WB-16, TO-272 WB-16 Gull Package Image
