JN5148: 32-bit MCU and IEEE802.15.4 transceiver ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

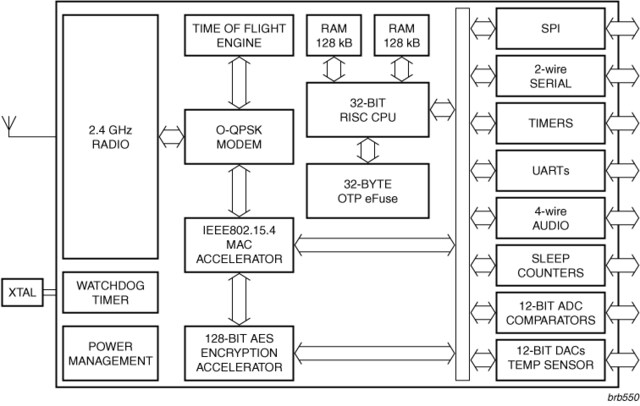

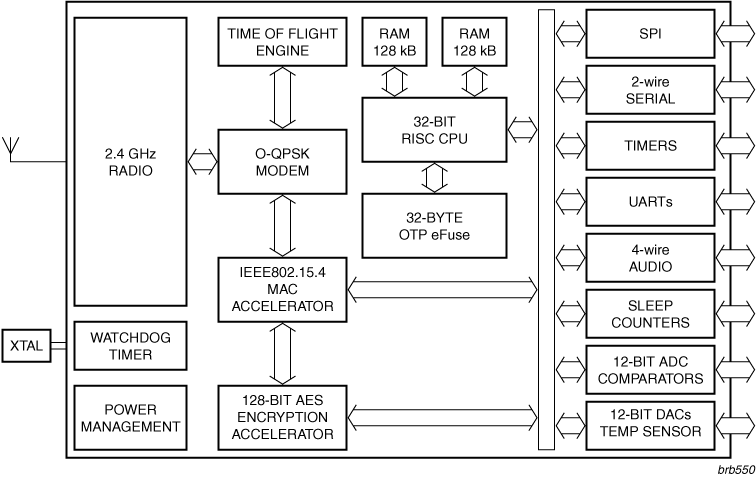

The JN5148 is an ultra low power, high performance MCU combined with an IEEE802.15.4 compliant transceiver. It is targeted at low-power wireless networking applications, and features an enhanced 32-bit RISC processor offering high coding efficiency through variable width instructions, a multi-stage instruction pipeline and low power operation with programmable clock speeds and various sleep modes. The device comprises 128 kB of ROM, 128 kB of RAM, and a rich mix of analogue and digital peripherals. The large memory footprint allows the device to run both the networking stack, such as ZigBee PRO or NXP"s proprietary JenNet networking stack, and an embedded application or in a co-processor mode. The operating current is below 18 mA, allowing operation direct from a coin cell.

MoreLess

Features

Extensive user peripherals
Highly featured 32-bit RISC CPU for high performance and low power
Large memory footprint to run ZigBee PRO together with an application
Single chip integrates transceiver and microcontroller
System BOM is low in component count and cost
Very low current solution for long battery life

Target Applications

Home and commercial building automation
Industrial systems
Lighting Systems
Location Aware services – e.g. Asset Tracking
Remote Control
Robust and secure low power wireless applications
Smart metering (e.g. AMR)
Telemetry
Toys and gaming peripherals
ZigBee PRO networks

MoreLess

Features

Extensive user peripherals
Highly featured 32-bit RISC CPU for high performance and low power
Large memory footprint to run ZigBee PRO together with an application
Single chip integrates transceiver and microcontroller
System BOM is low in component count and cost
Very low current solution for long battery life

Target Applications

Home and commercial building automation
Industrial systems
Lighting Systems
Location Aware services – e.g. Asset Tracking
Remote Control
Robust and secure low power wireless applications
Smart metering (e.g. AMR)
Telemetry
Toys and gaming peripherals
ZigBee PRO networks
