DSP56855: Digital Signal Controller ARCHIVED

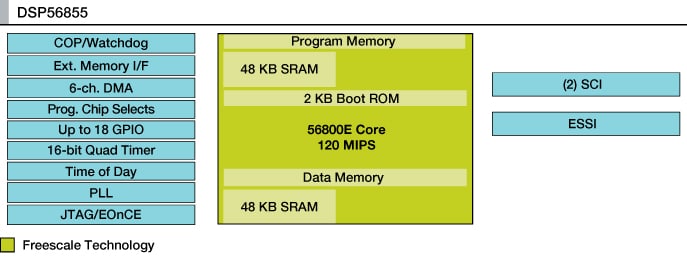

The DSP56855, a member of the DSP56800E core-based family of digital signal controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. An extremely cost-effective solution, the DSP56855 is well-suited for many applications because of its low cost, flexibility and compact program code. The DSP56855 includes many peripherals especially useful for teledatacom devices, Internet appliances, portable devices, TAD, voice recognition, hands-free devices and general purpose applications.

The DSP56800E core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP and MCU applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications.

Archived content is no longer updated and is made available for historical reference only.
