MSC8151|High-Performance Single-Core DSP

Overview

Archived content is no longer updated and is made available for historical reference only.

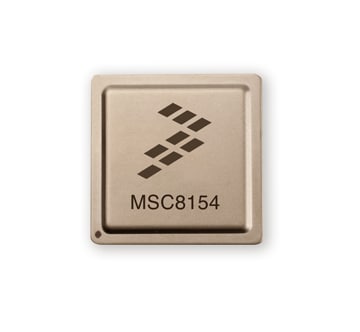

The MSC8154 device is one of Our fourth-generation high-end multicore DSP devices that target the broadband wireless base stations and other communications infrastructure. The MSC8154 is a four-core DSP based on NXP’s SC3850 StarCore^® technology designed to advance the capabilities of wireless broadband equipment. It delivers industry-leading performance and power savings, leveraging 45 nm process technology in a highly integrated system-on-chip (SoC) to provide performance equivalent to a 4 GHz single-core device. The MSC8154 helps equipment manufacturers and carriers create solutions and services that enable near-term, mainstream adoption of next-generation wireless standards such as 3G-LTE, WiMAX, HSPA+ and TDD-LTE. The device is designed to lower system costs by integrating functionality into a single device that previously required multiple discrete parts.

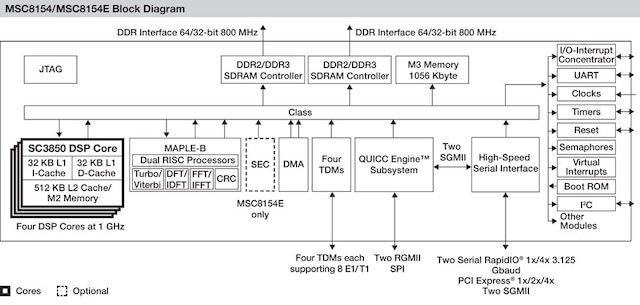

The MSC8154 DSP delivers a high level of performance and integration, combining four fully programmable new and enhanced SC3850 DSP cores, each running at up to 1 GHz with an architecture highly optimized for wireless infrastructure applications. Developed by NXP^® and integrated on-chip, the MAPLE-B baseband accelerator supports hardware acceleration for Turbo and Viterbi channel decoding and for DFT/iDFT and FFT/iFFT algorithms and includes CRC processing. An internal RISC-based QUICC Engine^® subsystem supports multiple networking protocols to guarantee reliable data transport over packet networks while significantly offloading processing from the DSP cores.

The MSC8154 embeds large internal memory and supports a variety of advanced, high-speed interface types, including two RapidIO® interfaces, two gigabit Ethernet interfaces for network communications, a PCI Express® controller, two DDR controllers for high-speed, industry standard memory interface and four multi-channel time division multiplexing (TDM) interfaces. The MSC8154 is pin compatible with the MSC8156.

MoreLess

Features

Four StarCore^® DSP SC3850 core subsystems operating at up to 1 GHz/8000 MMACS per core and up to 32000 MMACS per device.
Multi accelerator platform engine for baseband (MAPLE-B)
High-speed, high-bandwidth CLASS fabric arbitrates between the DSP cores and other CLASS leaders to M2 memory, M3 memory, DDR controllers, MAPLE-B and the configuration registers
Two DDR controllers with up to 400 MHz clock (800 MHz data) rate and 32/64-bit DDR2/3 SDRAM data bus
32-channel DMA controller
Dual RISC core QUICC Engine^® subsystem operating at up to 500 MHz
HSSI that supports two 4x SerDes ports
Four TDM interfaces
UART and I²C interfaces
Eight software watchdog timers
Sixteen 16-bit timers and two 32-bit general purpose timers per core for RTOS support.
I/O interrupt concentrator and virtual interrupt support, eight hardware semaphores
Thirty-two GPIO ports multiplexed with interface signals and IRQ inputs
Boot options: Ethernet, Serial RapidIO, I²C and serial peripheral interface (SPI)
Three input clocks and five PLLs
JTAG Test Access Port (TAP) and boundary scan architecture designed to comply with IEEE® Std. 1149.1™ profiling and performance monitoring support
Reduced power dissipation with wait, stop and power down low-power standby modes
Optimized power management circuitry
CMOS 45 nm SOI technology in 29 mm x 29 mm, 783 ball FC-PBGA package
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 10 years after launch
