This board is no longer in production. The replacement for this board is the OM13074
The LPCXpresso11U37H board is an extended variant of the standard LPCXpresso V2 board design, designed to allow evaluation of the I/O Handler functionality available on parts such as the LPC11U37HFBD64. The I/O Handler is a software library-supported hardware engine that can be used to add performance, connectivity and flexibility to system designs. The I/O Handler can emulate serial interfaces such as UART, I²C, and I²S with no or very low additional CPU load and can off-load the CPU by performing processing-intensive functions like DMA transfers in hardware.
The most notable changes in the design of the LPCXpresso11U37H board are:
LPCXpresso V2 boards have different PMOD support depending on their target applications. Further information below:

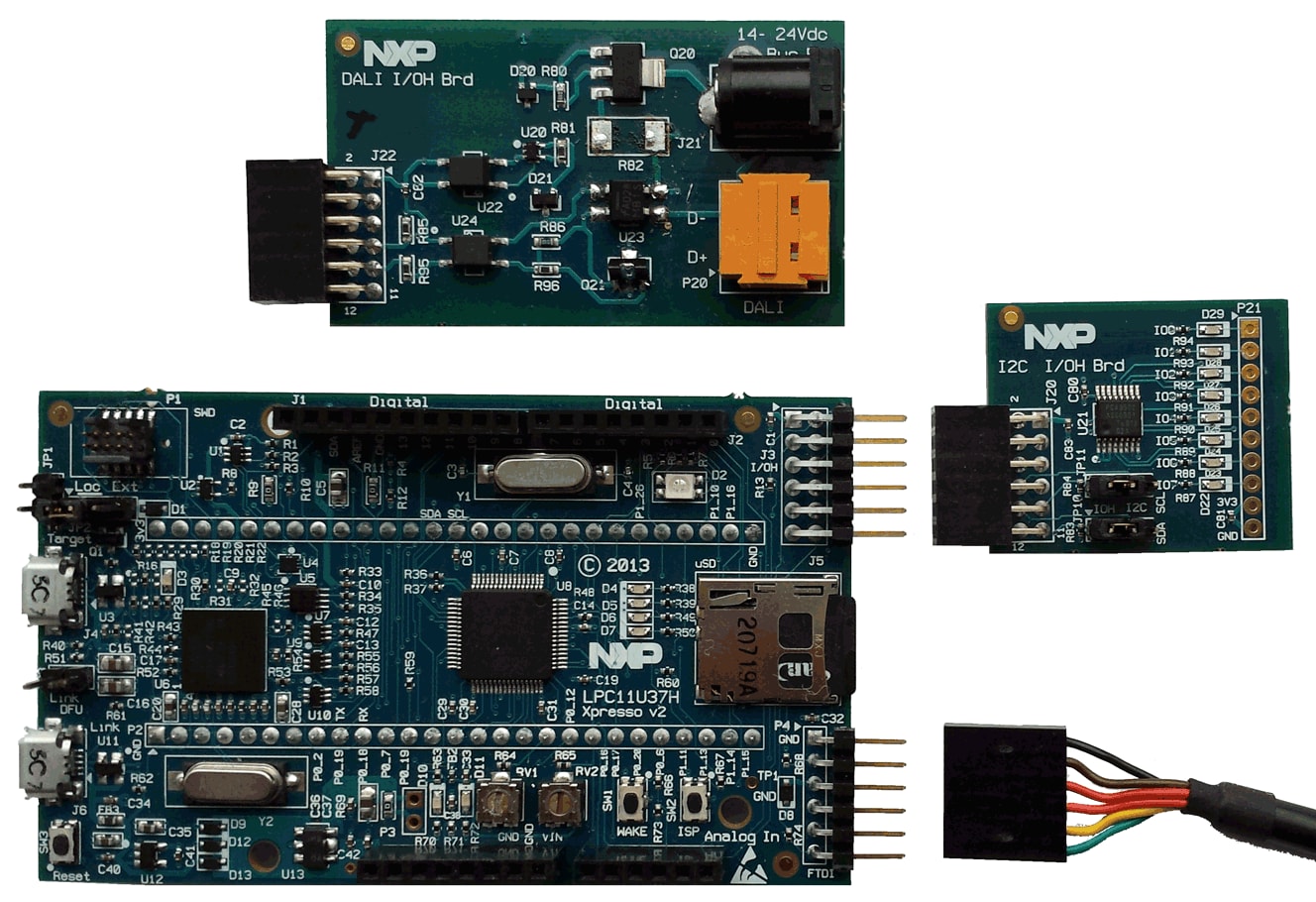

The LPCX11U37H I/O handler kit uses the PMOD interface connections for the specialized I2C and DALI daughter cards, with the LPCXpresso-side connector being male rather than female. In the LPCXpresso11U37H only version (available July 2014) does not have a PMOD connector fitted, so one can be added for use with standard PMOD-compatible cards.
I/O Handler LPCXpresso board with Link2 On Board Debug.
