Industrial Development Platform

MPC8360E-RDK
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

PowerQUICC II Pro (MPC83xx)

Features

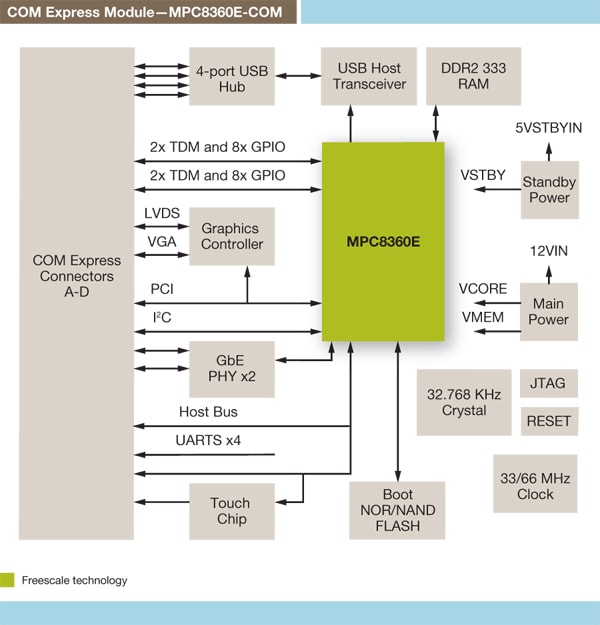

Production Ready COM-Express Module

  • Type 3 module
  • Supports full MPC83xx PowerQUICC® processor family
  • 256 MB of DDR2 SDRAM
  • 8 MB boot NOR flash
  • 2x 10/100/1000 Mbit/s Ethernet
  • 2x 10/100 fast Ethernet
  • Graphics and touchscreen capable
  • 4x full functional UART
  • 32-bit PCI connection
  • 1x SPI
  • 1x I2C
  • Four-port USB HUB
  • 8 GPIO pins

MPC83XX Development Carrier Board

  • 2 x PCI Express® (x1 type)
  • 1 x PCI slots (32-bit / 66 MHz or 33 MHz)
  • Common I/O routed to back panel
    • 4 USB 2.0
    • 4 Ethernet
    • 2 RS485
    • 2 RS-232
    • 4 SATA
  • Wireless connectivity through 1x MiniPCI
    • 802.11 or ZigBee® Technology
