PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with 1 GB Ethernet, UTOPIA

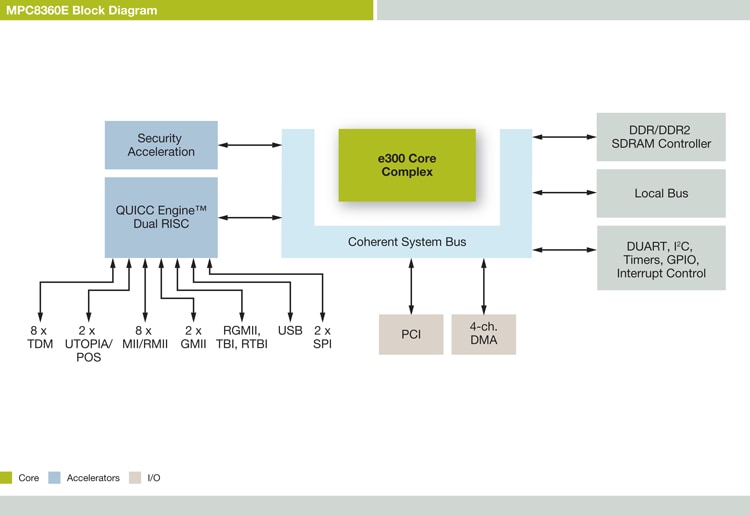

Block Diagram

NXP PowerQUICC MPC8360E Communications Processor Block Diagram

PowerQUICC<sup>&#174;</sup> MPC8360E Communications Processor Block Diagram

Features

  • e300 core operating from 266 MHz to 667 MHz
    • 32-bit, high-performance superscalar core
    • 1,261 MIPS at 667 MHz; 503 MIPS at 266 MHz
    • Double-precision floating point, integer, load/store, system register branch processor units and 32 KB data and 32 KB instruction cache with line-locking support
  • QUICC Engine® initially operating up to 500 MHz
    • Two 32-bit RISC controllers for flexible support of the communications peripherals
    • Eight unified communication controllers (UCCs) supporting the following protocols and interfaces:
    • 10/100/1000 Mbps Ethernet
    • ATM SAR supporting AAL5, AAL2, AAL1,AAL0, TM 4.0 CBR,VBR, UBR traffic types, up to 64KB external connections
    • Inverse multiplexing for ATM (IMA)
    • POS up to 622 Mbps
    • Transparent
    • HDLC
    • Multilink, multiclass PPP
    • HDLC bus
    • UART
    • BISYNC
    • One multichannel communication controller (MCC) supporting
      • 256 channels with up to eight TDMs
      • Transparent and HDLC mode per channel
      • Support for signaling system number 7 (SS7)
      • Almost any combination of subgroups can be multiplexed to single or multiple TDM interfaces
    • Two UTOPIA/POS interfaces supporting up to 128 multi-PHY each
    • Two serial peripheral interface (SPI)
    • Eight TDM interfaces (T1/E1)
      • Aggregate bandwidth of 64 kbps and 256 channels
      • Maximum of 16 Mbps and 256 channels on a single TDM link
      • 2,048 bytes of SI RAM (1,024 entries)
      • Eight programmable strobes
      • Bit or byte resolution
      • Independent transmit and receive routing, frame synchronization
      • Supports T1, CEPT, T1/E1, T3/E3, pulse-code modulation highway, ISDNprimary/basic rate, NXP® interchip digital link (IDL) and user-defined TDM serial interfaces
    • 16 independent baud rate generators
    • Four independent 16-bit timers that can be interconnected as two 32-bit timers
    • Two SPI ports that can be configured as an Ethernet management port for management data input/output (MDIO), while the other can be configured for low-cost serial peripherals; the SPI also has a CPU mode that can be configured by the CPU and not through the QUICC Engine
  • USB interface (USB 2.0 full-/low-speed compatible)
  • DDR memory controller
    • Programmable timing supporting both DDR1 and DDR2 SDRAM
    • 2 x 32-bit or 1 x 64-bit data interface; up to 333 MHz data rate
    • Four banks of memory, each up to 1 GB
    • Full ECC support
  • PCI interface
    • One 32-bit PCI 2.2 bus controller (3.3V I/O; up to 66 MHz)
  • Integrated security (MPC8360E and MPC8358E only)
    • Public key execution (RSA and Diffie-Hellman)
    • Data encryption standard execution (DES and 3DES)
    • Advanced encryption standard (AES) execution
    • ARC-4 execution (RC4-compatible algorithm)
    • Message digest execution (SHA, MD5, HMAC)
    • Random number generation (RNG)
  • Local bus controller
    • Multiplexed 32-bit address and data operating up to 133 MHz
    • 32-, 16- and 8-bit port sizes controlled by on-chip memory controller
  • Dual UART (DUART)
  • Dual I²C interfaces (controller or target mode)
  • Four-channel DMA controller
  • General-purpose parallel I/O
  • IEEE 1149.1 JTAG test access port
  • Package option: 37.5 mm x 37.5 mm 740 TBGA
  • Process technology: 130 nm CMOS
  • Voltage: 1.2-volt core voltage with 3.3 and 2.5-volt I/O
  • This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch

Part numbers include: MPC8360CVVAGDGA, MPC8360CVVAJDGA, MPC8360ECVVAGDGA, MPC8360ECVVAJDGA, MPC8360EVVAGDGA, MPC8360EVVAJDGA, MPC8360EVVALFHA, MPC8360EZUAJDGA, MPC8360EZUALFHA, MPC8360VVAGDGA, MPC8360VVAJDGA, MPC8360VVALFHA, MPC8360ZUAJDGA.
