MPC8313E-RDB Reference Platform

MPC8313E-RDB Active

Roll over image to zoom in

The NXP® MPC8313E-RDB reference platform is ideal for hardware and software development for cost-optimized networking applications.

  • The cost-effective MPC8313E communications processor family meets the requirements of several small office/home office (SOHO), printing, IP services and industrial control applications

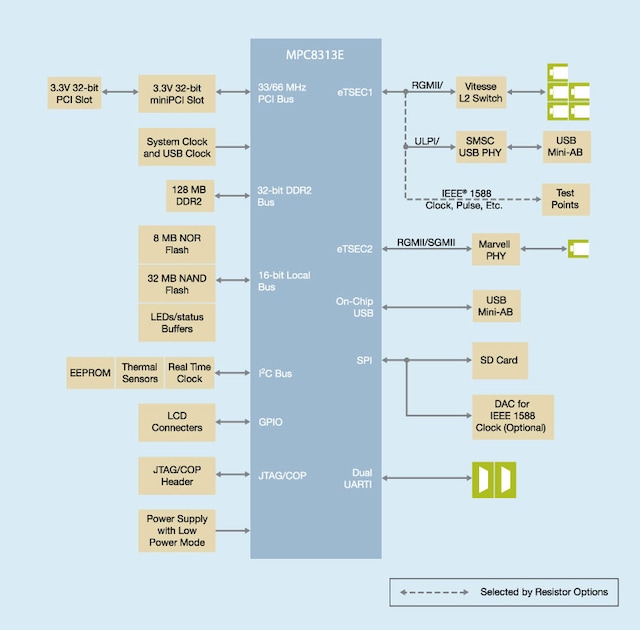

  • It leverages NXP’s highly integrated MPC8313E processor built on Power Architecture® technology and leading-edge external components: a five-port Gigabit Ethernet switch, USB port, one PCI slot, one MiniPCI slot and one SD card memory slot
  • The high level of integration in the MPC8313E helps to lower overall system costs, improve performance and simplify board design

Product Details

Supported Devices

Processors and Microcontrollers

PowerQUICC II Pro (MPC83xx)

  • MPC8313E: Low-Power PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Security, USB

Features

Processor

  • NXP® MPC8313E running at 333/333 MHz (CPU/DDR2)

Memory

  • 128 MB unbuffered DDR2 SDRAM discrete devices
  • 8 MB flash single-chip memory
  • 32 MB NAND flash memory
  • 256 KB M24256 serial EEPROM
  • SD connector to interface with the SD memory card in SPI mode

Connectivity

  • LCD connectors by GPIO
  • ATX power supply connector
  • JTAG/COP for debugging

Interfaces

  • 10/100/1000 Base-T Ethernet ports:
    • eTSEC1, RGMII interface: five 10/100/1000 Base-T RJ-45 interfaces using Vitesse™ VSC7385 L2 switch
    • eTSEC2, selectable RGMII, or SGMII interface: one 10/100/1000 Base-T RJ-45 interface using Mavell™ 88E1111 PHY
  • USB 2.0 port:
    • High-speed host/device USB interface: selectable on-chip PHY or external ULPI PHY interface by SMSC USB3300 USB PHY
  • PCI: 32-bit PCI interface running at up to 66 MHz
    • One 32-bit 3.3 V PCI slot connected to PCI bus
    • One 32-bit 3.3 V Mini PCI slot connected to PCI bus
  • Dual UART ports:
    • DUART interface: supports two UART up to 115200 bps for console display

Buy Options

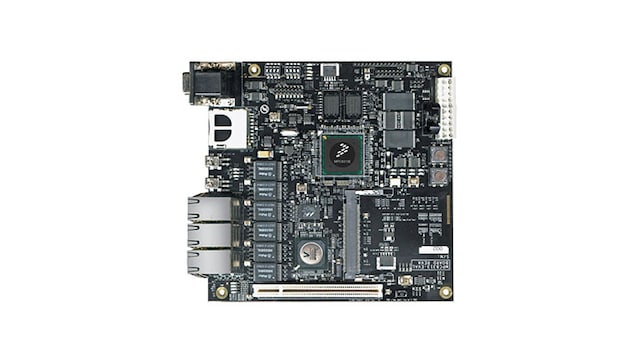

MPC8313E-RDBC-Image

Click to expand

  • MPC8313E-RDBC
    Active

  • PowerQUICC II Pro MPC8313E Reference Development Board rev2.2.

  • $343.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
