MPC8379E-RDB Reference Design Platform

MPC8379ERDB

Roll over image to zoom in

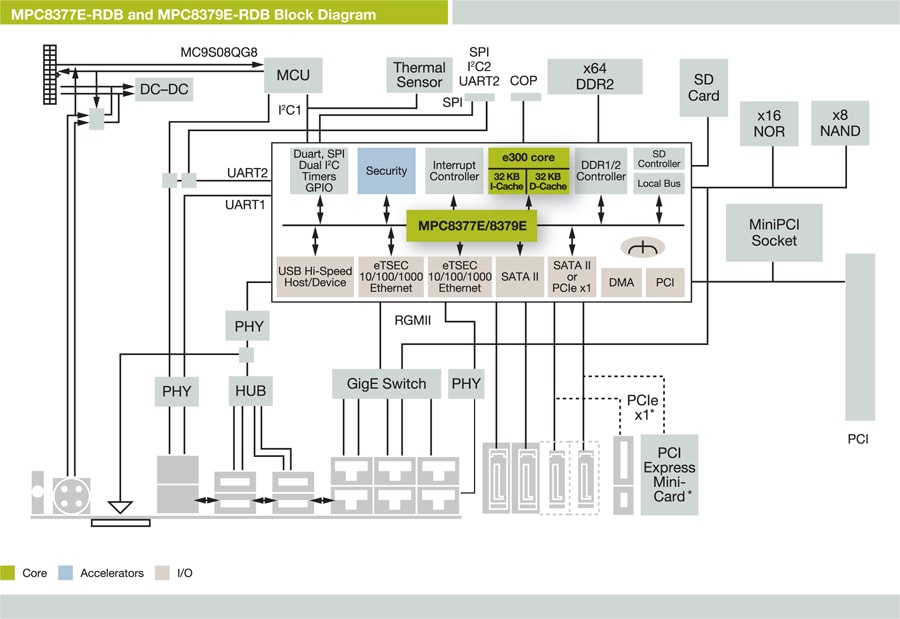

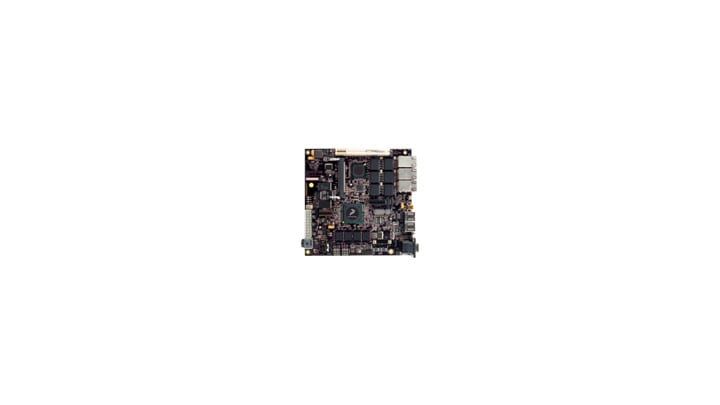

The MPC8379E-RDB is a highly integrated reference design board that can help shorten time to market. Aimed at small-to-medium business and consumer applications, such as network attached storage (NAS) with RAID 5, multi-function printers and office-in-a-box, this cost-effective board is based on the NXP® MPC837x family built on Power Architecture® technology, along with leading-edge external components to help you quickly design and implement target applications.

Product Details

Supported Devices

Processors and Microcontrollers

PowerQUICC II Pro (MPC83xx)

  • MPC8379E: PowerQUICC® II Pro Processor with DDR2, PCI, SATA, 1 GB Ethernet, USB, Security

Features

Microcontroller

  • Up to 667 MHz CPU frequency

Memory

  • 256 MB unbuffered DDR2 SDRAM
  • 8 MB NOR flash
  • 32 MB NAND flash
  • 256 kB serial EEPROM
  • SD card socket

Connectivity

  • Interfaces
    • 10/100/1000 Ethernet ports
      • One Gigabit RGMII connected to Vitesse
      • Gigabit PHY (VSC8201)
      • One five-port Vitesse Ethernet switch (VSC7385)
    • PCI
      • One MiniPCI connector
      • One standard PCI connector with extended REQ/GNT connector for riser card
    • SATA
      • Four standard SATA II connectors
    • USB 2.0
      • Four-port USB hub or one-port USB OTG
    • DUART

Debug

  • Programmable LEDs for debug use

Sensors

  • Thermal sensor on I²C bus
  • Six-layer PCB routing (four-layer signals, two-layer power, and ground)
  • Lead-free (RoHS), CE, and FCC Certification

Size

  • Mini-ITX form factor: 170 mm x 170 mm

Software

  • Board Support Package (BSP) that includes both U-Boot and Linux® 2.6 support (Available with third-party software applications. For more information, please contact your local NXP® sales office)
