Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588

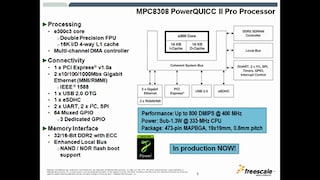

Click over video to play

Block Diagram

NXP PowerQUIICC MPC8308 Communications Processor Block Diagram

NXP<sup>&#174;</sup> PowerQUIICC MPC8308 Communications Processor Block Diagram

Features

  • e300c3 core built on Power Architecture® technology, up to 400 MHz
  • 16 KB instruction/16 KB data cache
  • DDR2 memory controller, 266 MHz data rate
  • Local bus controller
  • 1 x PCI Express interface
  • 2 x 10/100/1000 MACs, MII, RGMII
  • USB 2.0 host/device
  • eSDHC
  • DUART
  • 2 x I²C
  • Serial peripheral interface
  • IEEE 1588v2 time synchronization
  • < 1.23W at 333 MHz (typical)
  • 473-pin MAPBGA package, 19 mm x 19 mm
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

Part numbers include: MPC8308CVMADDA, MPC8308CVMAFDA, MPC8308CVMAGDA, MPC8308CZQADDA, MPC8308CZQAFD, MPC8308CZQAFDA, MPC8308CZQAGDA, MPC8308VMADDA, MPC8308VMAFDA, MPC8308VMAGDA, MPC8308ZQADDA, MPC8308ZQAFDA, MPC8308ZQAGDA.
