Multi Standard 27W Mobile Charging

TEA1936XDB1475
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

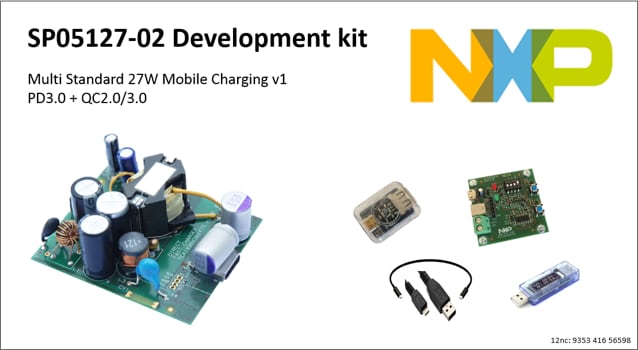

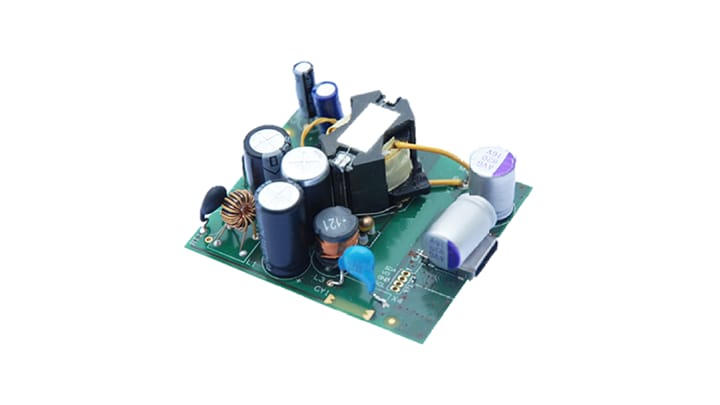

The Multi Standard 27W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency and high reliability. The NXP chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.

The Multi Standard Charger supports the following standards:
  • USB PD3.0 / PPS
  • USB PD2.0
  • QC2.0 and QC3.0 certified

Documentation

Quick reference to our documentation types.

Filters

1-5 of 7 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    TEA1936XDB1475-GRBR.zip

    ZIPRev 1Apr 13, 2018 09:05:001.4 MBTEA1936XDB1475-GRBR
    Download
