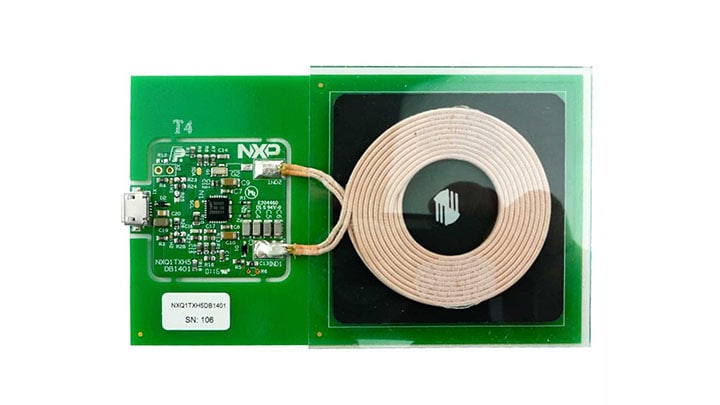

NXQ1TXH5 WPC 1.2 Qi-compliant wireless charger demo board

  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Product Details

Select a section:


  • WPC 1.2 Qi-compliant device for A5/A11/A12/A16 5 V single-coil low-power transmitter

Power Management

  • Operates from 5 V USB supply
  • Very low-power receiver detection circuitry; standby power 10 mW (typ.)
  • FOD with automatic switching between V1.1 and V1.0 for legacy receiver support
  • Integrated high efficiency full-bridge power stage with low EMI radiation meeting EN55022 radiated and conducted emission limits


  • NTC input for external temperature check and protection

User Components

  • LED (x2)
  • Buzzer outputs for user interface
  • Very few external components needed, minimizing cost and board space

Buy Options

  • NXQ1TXH5DB1401

  • NXQ1TXH5 WPC 1.2 Qi-compliant wireless charger demo board.

  • $289.80 USD
  • For a quantity of 1
Buy From Distributor


Quick reference to our documentation types.

2 documents

Design Resources

Select a section:

Design Files

4 design files

  • Printed Circuit Boards and Schematics

    Gerber files NXQ1TXH5DB1401

  • Design Files - miscellaneous

    PCB layout

  • Design Files - miscellaneous

    Circuit diagram

  • Design Files - miscellaneous

    Component list
