Quickstart Board for LPC4088

OM13063 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This board is no longer manufactured and will only be available while supplies last.

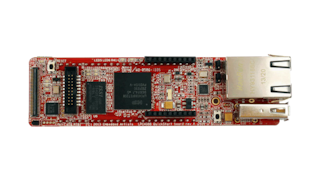

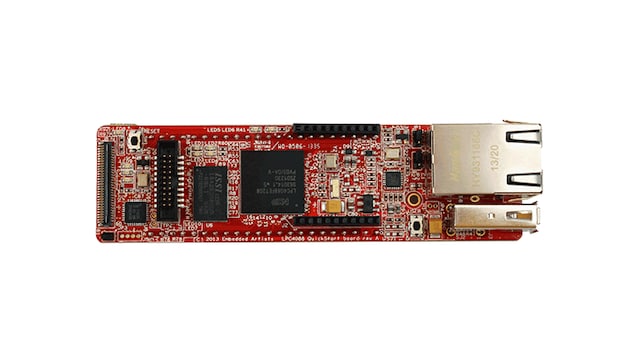

Embedded Artists' LPC4088 QuickStart Board is an easy to use Arm Cortex-M4 rapid prototyping board in a standard through hole DIP package (44-pin), targeted at high-performance as well as low-power applications. Communication interfaces, large on-board memories and LCD controller enables graphical user inteface applications. The LPC4088 QuickStart Board is mbed Enabled, to take full advantage of the mbed platform.

Product Details

Features

Microcontroller

  • Arm® Cortex®-M4 LPC4088 microcontroller in a BGA package, running at up to 120 MHz

Memory

  • 8 MB Quad SPI and 512 kB on-chip program flash
  • 32 MB SDRAM (x32 bit databus for high-bandwidth access), 96 kB on-chip SRAM, and 4 kB on-chip E²PROM data memory

Connectivity

  • 10/100 Mbit/s Ethernet (RJ45)
  • USB Host (A type) and Device (micro-B) interfaces
  • Mbed HDG debug interface
  • 20-pin SWD/Trace connector (Arm standard debug connector)
  • 61 pin 0.3 mm pitch FPC connector for display expansion
  • 20-pin XBee compatible connector for RF module add-on

Debug

  • CMSIS-DAP Interface On-board (debug interface functions)
  • 12 MHz main and 32.768 kHz RTC crystals

Buy Options

OM13063-Image

Click to expand

  • OM13063
    Active

  • LPC4088 QuickStart Board.
