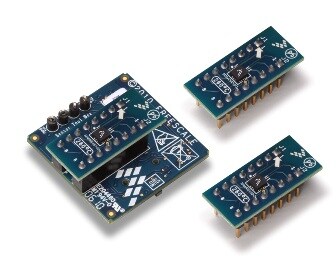

Join our teamSensor Toolbox Accelerometer board for MMA845X ARCHIVED
LFSTBEB845Xbd
Specifications
Technical and Functional Specifications
- Easily evaluate and demonstrate sensor functionality
- Unified architecture with the same GUI software
- Plug and play
- Flexible with a variety of boards that fit together
- Can quickly demonstrate all sensor types
Supported Devices
Documents and Software
Documents ( 19 )
- Data Sheet ( 3 )
- Application Note ( 11 )
- Users Guide ( 2 )
- Application Note Software ( 1 )
- Fact Sheet ( 1 )
- Supporting Information ( 1 )
Software ( 1 )
Documents
Data Sheet ( 3 )
-
MMA8451Q, 3-Axis, 14-bit/8-bit Digital Accelerometer - Data Sheet (REV 10.3 )
The MMA8451Q is a smart low-power, three-axis, capacitive micromachined accelerometer with 14 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. There is access to both low pass filtered data as well as high pass filtered data.
-
MMA8453Q, 3-Axis, 10-bit/8-bit Digital Accelerometer - Data Sheet (REV 7.1 )
The MMA8453Q is a smart low-power, three-axis, capacitive micromachined accelerometer with 10 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. the MMA8453Q to monitor events and remain in a low power mode during periods of inactivity. The MMA8453Q is available in a 3 mm x 3 mm x 1 mm QFN package.
-
MMA8452Q, 3-Axis, 12-bit/8-bit Digital Accelerometer - Data Sheet (REV 10 )
MMA8452Q: This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. The MMA8452Q has user selectable full scales of ±2g/±4g/±8g with high pass filtered data as well as non filtered data available real-time.
Application Note ( 11 )
-
AN4074, Auto-Wake/Sleep Using the MMA8451, 2, 3Q - Application Notes (REV 1 )
AN4074: Accelerometers are commonly used in hand-held electronics and/or battery operated electronic devices. When designing in the accelerometer, battery power usage is often a critical feature which concerns many designers. This application note will explain the following: The Auto-Wake/Sleep feature, Description of the configuration procedure with example register settings and code.
-
AN4073, Using the 32 Sample First In First Out (FIFO) in the MMA8451Q - Application Notes (REV 1 )
AN4073: The MMA8451Q has a built-in 32 sample first in, first out buffer capable of storing 14-bit data or 8-bit data. The data can be high pass filtered or not depending on whether the HPF_OUT bit is set in the part. The FIFO is very beneficial for saving overall system power by putting the processor into sleep mode until it needs to process data from the accelerometer.
-
AN4070, Motion and Freefall Detection Using the MMA8451, 2, 3Q - Application Notes (REV 1 )
AN4070: The MMA8451, 2, 3Q has one (1) embedded functions for both Motion and/or Freefall along with a very flexible interrupt routing scheme. Motion is often used to simply alert the main processor that the device is currently in use. The transient function has the option of disabling the high pass filter and can behave exactly like the motion detection.
-
AN4071, High-Pass Filtered Data and Transient Detection Using the MMA8451, 2, 3Q - Application Notes (REV 1 )
AN4071: The MMA8451, 2, 3Q has a built-in high-pass filter. In the MMA8451, 2Q the output data can go through the high-pass filter, eliminating the offset (DC) and low frequencies (well below the cutoff). Note that the MMA8453Q does not have the capability to read out data from the high-pass filter. The high-pass filter cutoff frequency can be set by the user to four different frequencies which are dependent on the Output Data Rate (ODR).
-
AN4069, Offset Calibration of the MMA8451, 2, 3Q - Application Notes (REV 1 )
AN4069: The MMA8451, 2, 3Q has a selectable dynamic range of ±2g, ±4g, ±8g. The device has eight different output data rates, selectable high-pass filter cutoff frequencies, and high-pass filtered data. The available resolution of the data and the embedded features is dependant on the specific device. The MMA8450Q has a different memory map and has a slightly different pinout configuration.
-
AN4475, MMA845x Driver: Quick Start Guide - Application Notes (REV 0 )
AN4475: This quick start guide demonstrates how to load the MMA845x driver and also outlines some of the elementary function commands available. For this particular driver, the following hardware is used: the Sensor Toolbox Board.
-
AN4076, Data Manipulation and Basic Settings of the MMA8451, 2, 3Q - Application Notes (REV 1 )
AN4076: The MMA8451Q has a embedded features which include eight different sample rates, 32 different cutoff frequencies for the high-pass filter, Three dynamic ranges and four oversampling modes. It also has a 32 sample FIFO for collecting and storing data, which is the most efficient way to access the data for minimizing the I2C transactions.
-
AN4072, MMA8451, 2, 3Q Single/Double and Directional Tap Detection - Application Notes (REV 0 )
AN4072: Tapping is the way that users employ interacting with hand-held products that have an integrated accelerometer. Tap as an input to the product device allows users to enjoy a more advanced and interactive user experience. The tap replaces the need for the mouse to point and click and select options. The MMA8451, 2, 3Q has embedded single tap double and directional tap capabilities.
-
AN4068, Embedded Orientation Detection Using the MMA8451, 2, 3Q - Application Notes (REV 2 )
AN4068: This application note targets the portrait/landscape orientation detection feature which has become standard in many handheld electronic devices. Additionally, this application note aims to explain uses as well as highlight some of the challenges of designing an embedded algorithm into the sensor.
-
AN4077, MMA845xQ Design Checklist and Board Mounting Guidelines - Application Notes (REV 2 )
AN4077: This document is intended to assist customers with the design-in of the MMA845xQ 3-axis low-g consumer grade accelerometers. This document points out the similarities of the pinout for these devices with a recommended layout for implementing one board compatible for all devices. Guidelines for board mounting to a PCB are given with recommendations for I2C communication and speeds.
-
AN4075, The Trade-off Between High Resolution and Low Power Using Oversampling Modes - Application Notes (REV 1 )
AN4075: This application note is targeted to try to help answer the question "How many bits are enough" as well as several others that fall out of this same question. The intent is to educate customers on the details to understand more about their application, to help extract meaningful information from the data sheet and learn some of the techniques to get the most out of the sensor for the application while realizing the limitations of the sensor.
Users Guide ( 2 )
-
LFSTBEB845XQSG (REV 0 )
-
MMA845xQSTUG.fm (REV 1 )
The NXP MMA845xQ sensor toolbox accelerometer kit provides hardware and software for development and demonstration of the MMA845xQ family of accelerometers.
Application Note Software ( 1 )
-
AN4076 Example Code to accompany application note AN4076 (REV 2 )
AN4076 Example Code to accompany application note AN4076
Fact Sheet ( 1 )
-
MMA845xQ Xtrinsic Accelerometer Family - Fact Sheet (REV 1 )
Our MMA845xQ Xtrinsic accelerometer family offers extremely low power and pin compatibility with a broad range of resolution (14-, 12- and 10-bit) and embedded features for configurable, accurate motion analysis, with six user-configurable sample rates that can be set over a wide range between 1.5 to 800 Hz. Contains the 14/8-bit FIFO which holds up to 32 samples of either low pass filtered or high pass filtered data.
MMA845xQ Xtrinsic加速度传感器系列 - 简介 (REV 0 )
Supporting Information ( 1 )
-
LTFSTBEV845X_SCH (REV A )
MCU Schematics for MMA845x series
Software
Embedded Software ( 1 )
BSP, Drivers and Middleware ( 1 )
-
Sensor Toolbox Installer (REV 4.2.1.20 )
