- No Longer Manufactured
- Sensor Toolbox for NXP® Smart Sensing Platform
KITMMA955XLEVM: Sensor Toolbox for NXP® Smart Sensing Platform ARCHIVED

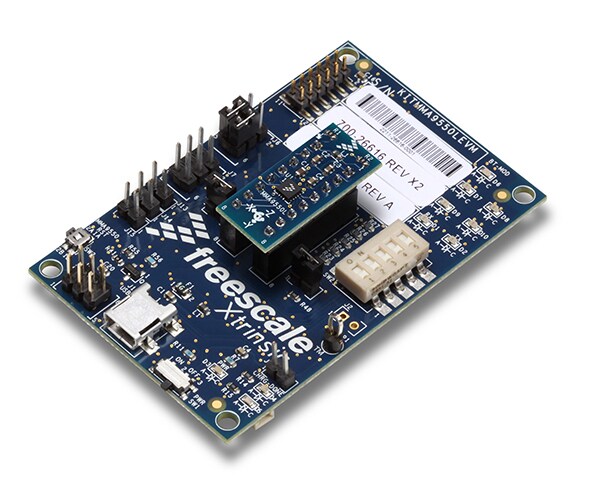

KITMMA9550LEVM Motion-Sensing Platform Interface Board
Specifications
Technical and Functional Specifications
- Easily evaluate and demonstrate sensor functionality
- Unified architecture with the same GUI software
- Plug and play
- Flexible with a variety of boards that fit together
Supported Devices
Documents and Software
Documents ( 12 )
- Data Sheet ( 1 )
- Reference Manual ( 3 )
- Application Note ( 3 )
- User Guide ( 3 )
- Application Note Software ( 1 )
- Supporting Information ( 1 )
Software ( 1 )
Documents
Data Sheet ( 1 )
-
MMA9553L: Freescale Intelligent Motion Sensing Platform Data Sheet for the MMA955xL including the MMA9553L
The MMA955xL device an intelligent sensor, incorporating dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit programmable microcontroller.
Reference Manual ( 3 )
-
Intelligent, Motion-Sensing Platform Hardware Reference Manual for MMA955XL, including the MMA9553L and the MMA9559L
This reference manual describes the features, architecture and programming model of the MMA955xL, an intelligent, three-axis accelerometer.
-
MMA9559LSWRM.book
This reference manual describes the features, architecture and programming model of the MMA9559L Intelligent, Motion-Sensing Platform. This device incorporates dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit programmable microcontroller. For information about the device’s hardware, see the MMA955xL Intelligent, Motion-Sensing Hardware Reference Manual (MMA955xLRM).
-
MMA955xL Intelligent, Motion-Sensing Platform Software - Reference Manual
This software reference manual describes the features, architecture, and programming model of the MMA9550L, MMA9551L, and MMA9553L intelligent, motion-sensing platforms. The MMA955xL low-g, 3-axis accelerometer is a member of NXP’s Xtrinsic family of intelligent sensor platforms. The device incorporates dedicated accelerometer MEMS transducers, signal-conditioning, data conversion, a 32-bit programmable microcontroller.
Application Note ( 3 )
-
AN4315, Using the NXP® MMA9550L for High Resolution Spectral Estimation of Vibration Data - Application Notes
AN4317: Android is one of the most popular Operating Systems (OS) for smart phones and other portable devices. This application note introduces how the coordinate system on Android is defined, and how to convert the 3-axis directions on the driver code within the Android system. The sample code discussed is based on NXP’s driver code for Android 2.2 and 2.3, using the MMA8452Q as an example.
-
AN4128, Installation of the MMA955xL CodeWarrior Service Pack - Application Notes
AN4128: The NXP MMA955xL Xtrinsic family devices are high-precision, intelligent accelerometers built on the ColdFire v1 platform. The MMA955xL family's microcontroller core is programmable and configurable with the Eclipse based CodeWarrior for Microcontrollers Development Studio software. CodeWarrior?s highly visual and automated Integrated Design Environment (IDE), accelerates the development of custom algorithms and features for complex embedded applications.
-
Building Custom Applications on MMA9550L/MMA9551L
The NXP MMA955xL Xtrinsic family of devices are high-precision, intelligent accelerometers built on the ColdFire version 1 core. The MMA955xL family’s microcontroller core enables the development of custom applications in the built-in flash memory. Programming and debugging tasks are supported by NXP’s CodeWarrior Development Studio for Microcontrollers (Eclipse IDE).
User Guide ( 3 )
-
KITMMA9550LEVM Quick Start Guide
KITMMA9550LEVM Quick Start Guide
-
MMA9550L and MMA9551L Sensor Toolboxes - User’s Guide
The MMA955xL devices are 3-axis accelerometers from NXP’s Xtrinsic family of intelligent, motion-sensing platforms. They incorporate dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit, programmable microcontroller. The KITMMA9550LEVM and KITMMA9551LEVM evaluation kits for the MMA955xL devices demonstrates the common accelerometer user cases and provides access to device-specific features.
-
KITMMA9551LEVM Quick Start Guide
Intelligent Motion Sensing Platform Quick Start Guide
Application Note Software ( 1 )
-
AN4129SW, Accompanying software for application note AN4129
The NXP MMA955xL Xtrinsic family of devices are high-precision, intelligent accelerometers built on the ColdFire version 1 core. The MMA955xL family’s microcontroller core enables the development of custom applications in the built-in flash memory. Programming and debugging tasks are supported by NXP’s CodeWarrior Development Studio for Microcontrollers (Eclipse IDE).
Supporting Information ( 1 )
-
MMA9553L Version 1.33 Software - Release Notes
This release note documents the NXP MMA9553L, version 1.33 pedometer product. This MMA9553L release was compiled and tested with the following development tools: CodeWarrior Development Studio for Microcontrollers Version 10.1 including support available for ColdFire V1 devices, MMA955xL devices and MMA955xL user-mode service pack.
