- TEA1716 150 W / 19.5 V Computing All in One Resonant Demo Board
TEA1716 150 W / 19.5 V Computing All in One Resonant Demo Board
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Archived content is no longer updated and is made available for historical reference only.

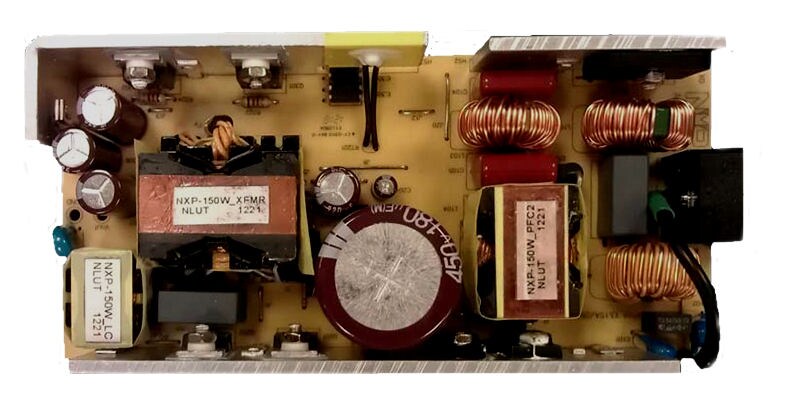

This resonant LLC board demonstrates a EuPlot6 compliant, compact All-in-One adapter. The 150W All-in-One adapter is using the TEA1716 resonant combo controller and a TEA1795 SR controller to increase the efficiency up to 92%. The typical output voltage is 19.5V.
