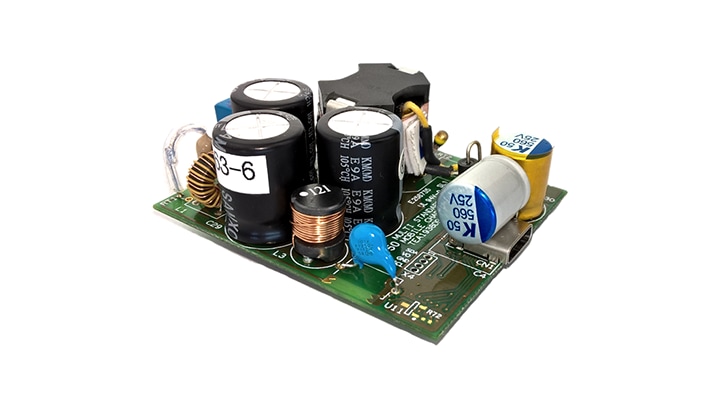

TEA1936XDB1463 - Multi Standard 45W Mobile Charging

TEA1936XDB1463-
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

The Multi-Standard 45W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency and high reliability. The NXP chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.

The Multi-Standard Charger supports the following standards:

  • USB PD3.0 / PPS
  • USB PD2.0
  • QC3.0 and QC2.0 certified

Product Details

Select a section:

Key Parametrics

Symbol Parameter Value
Vi input voltage 90 to 264 V
fi input frequency 47 to 64 Hz
Vo output voltages 5 V, 9 V, 12 V
Iout maximum output current 3 A (@ 5 V), 3 A (@ 9 V), 2.25 A (@ 12 V)
Pout output power [nominal]
[peak]		 27.0 W
28.5 W
n efficiency [average] > 90 %
Pi(noload) no-load input power < 30 mW
Tambient_adapt ambient temperature adapter inside casing -40 °C to 85 °C
- energy standard ENERGY STAR v6.0,
CoC. tier 2
- Electro Magnetic Interference (EMI) CISPR22 compliant,
EN 55022
L x B x H board dimensions 48 mm x 41 mm x 21 mm
TEA19361 Primary Flyback Controller
TEA1993 Synchronous Rectification Controller
TEA19051 QC4.0/QC4.0+/PPS Controller PD3.0= 5V/3A, 9V/3A, 12V/2.25A
QC2.0/3.0= 3.3V…. 12V / 27W (max)

Buy Options

  • TEA1936XDB1463

  • TEA1936XDB1463 - Multi Standard 45W Mobile Charging.

    • TEA1936XDB1463 demo board
    • Quick start guide
  • $289.80 USD
  • For a quantity of 1
Buy From Distributor

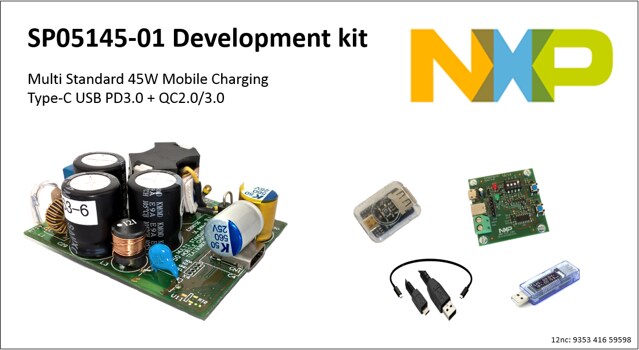

  • SP05145-01

  • TEA1936XDB1463 - Multi Standard 45W Mobile Charging.

    • TEA1936XDB1463 demo board
    • LDR-PD2 Type-C tester
    • USB Voltage and Current tester
    • QC2.0/3.0 test board
    • Cables
    • Quick start guide
  • $434.70 USD
  • For a quantity of 1
Buy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1-5 of 7 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    TEA1936XDB1463-GRBR.zip

    ZIPRev 1Mar 1, 2018 15:02:001.6 MBTEA1936XDB1463-GRBR
    Download
