USB to Serial Bridge Evaluation Board

EVBUSB2SER
Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

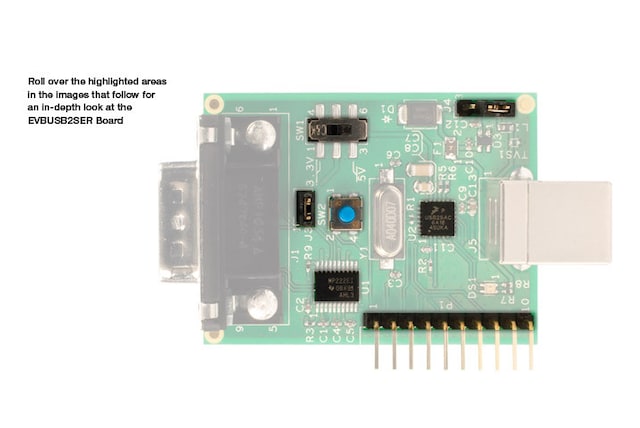

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

The EVBUSB2SER board is part of Our solutions for communication and provides another way to connect your embedded system via USB.

  • The EVBUSB2SER board is a communication bridge between the USB and serial data, which can be any RS232/RS485 or TTL
  • The board supports baud rates from 300 through 115200 bit/s, 8 data bits, odd or even parity, 1 or 2 stop bits, software (xon/xoff), and hardware flow control
  • Download of the EVBUSB2SER board driver is required

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

  • 56F801X: Digital Signal Controller for Motor Control Applications
  • 56F802X: Digital Signal Controller for Auto and Industrial Applications
  • 56F803X: Digital Signal Controller with CAN for Industrial Applications
  • 56F824X_825X: Digital Signal Controller
  • 56F800x: MC56F8006 and MCF56F8002 Digital Signal Controllers

8-Bit S08 MCUs

  • S08AC: 8-bit Flexis® AC128/96/60/48/32 MCUs
  • S08AW: 8-bit General Purpose AW60/48/32/16 MCUs
  • S08D: 8-bit Cost-Effective with CAN D MCUs
  • S08LL: 8-bit Segment LCD LL MCUs
  • S08QB: 8-bit QB MCUs
  • S08QE: 8-bit Flexis QE MCUs

K1x Mainstream

  • K10_100: Kinetis® K10-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_120: Kinetis® K10-120 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_50: Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_72: Kinetis® K10-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K3x Segment LCD

  • K30_100: Kinetis® K30-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K30_72: Kinetis K30-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

ColdFire® V1 Processors

  • MCF51AC: Flexis 32-Bit ColdFire. V1 Microcontrollers
  • MCF51QE: Flexis 32-Bit ColdFire® V1 Microcontroller

ColdFire+ MCUs

  • MCF51AG: 32-Bit ColdFire V1 Microcontrollers
  • MCF51CN128: 32-Bit ColdFire V1 Microcontrollers
  • MCF51EM: MCF51EM256 32-Bit MCU for Smart Meter Applications
  • MCF51Qx: ColdFire+ Qx Family

ColdFire® V2 MCUs

  • MCF521X: 32-Bit Microcontroller with CAN
  • MCF521XX: 32-Bit Microcontroller
  • MCF5223X: Integrated ColdFire® V2 Ethernet Microcontrollers
  • MCF528X: Integrated ColdFire® V2 Ethernet, CAN and Flash Microcontrollers

Products

No Longer Manufactured

  • USB2SER: USB to Serial Bridge - a Ready Play® Solution

Features

Connectivity

  • Single chip USB to RS-232 UART data transfer
  • Certified Full Speed USB 2.0 support
  • 300 bit/s - 115200 bit/s UART with software Xon/Xoff and hardware flow control

Power Management

  • 2.7 V to 5.5 V Voltage Operation
  • Available drivers for Windows™ 7, Windows Vista, Windows XP, and Linux™ Kernel 2.6.34 and higher
