Evaluation Kit - MC09XS3400, Quad High Side Switch

KIT09XS3400EVBE Active

Roll over image to zoom in

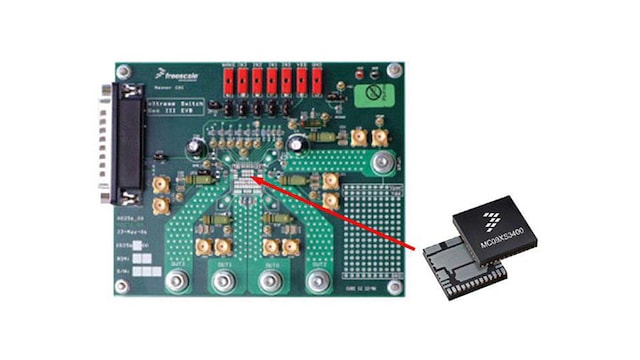

This evaluation board demonstrates the capability of the MC09XS3400 quad high-side switch product family designed for low-voltage automotive lighting applications, with integrated control and protective and diagnostic functions.

  • Supports programming, control, and diagnostics via a 16-bit SPI
  • Controls electromagnetic emissions via selectable output slew rates
  • Allows programing of the fault current trip levels and duration of acceptable lamp inrush
  • Provides fail-safe functionality of the outputs in case of MCU damage

Product Details

Features

Power Management

  • Operating voltage range of 6.0 to 20 V with sleep current < 5.0 µA, extended mode from 4.0 to 28 V
  • 8.0 MHz 16-bit 3.3 V and 5.0 V SPI control and status reporting with daisy chain capability

General Specifications

  • Drives four separate bulbs, LEDs, Xenon modules, or other loads
  • Programming, control, and diagnostics are accomplished using a 16-bit SPI
  • Each output can be controlled with an internal PWM modulated clock signal, instead of an external clock

Components

  • Four protected high side switches

Buy Options

KIT09XS3400EVBE-Image

Click to expand

KIT09XS3400EVBE
Active

Evaluation Kit - MC09XS3400, Quad High Side Switch (9.0 mOhm).
