Evaluation Kit - MC10XS3412, Quad High Side Switch

KIT10XS3412EVBE Active

Roll over image to zoom in

The KIT10XS3412EVBE Evaluation Kit supports the MC10XS3412 family of devices for low-voltage automotive lighting applications.

  • Enables programming, control, and diagnostics using a 16-bit SPI interface
  • Satisfies electromagnetic compatibility (EMC) requirements via output with selectable slew-rate
  • Offers an internal PWM modulated clock signal, instead of an external clock

Product Details

Features

Components

  • Four protected high-side switches

Power Management

  • Operating voltage range of 6.0 V to 20 V with sleep current < 5.0 μA, extended mode from 4.0 V to 28 V
  • 8 MHz 16-bit 3.3 V and 5 V SPI control and status reporting with daisy chain capability

General Specifications

  • Smart over-current shutdown, severe short-circuit, over-temperature protections with time limited auto-retry, and fail-safe mode in case of MCU damage
  • Output OFF or ON open-load detection compliant to bulbs or LEDs and short-to-battery detection. Analog current feedback with selectable ratio and board temperature feedback.

Buy Options

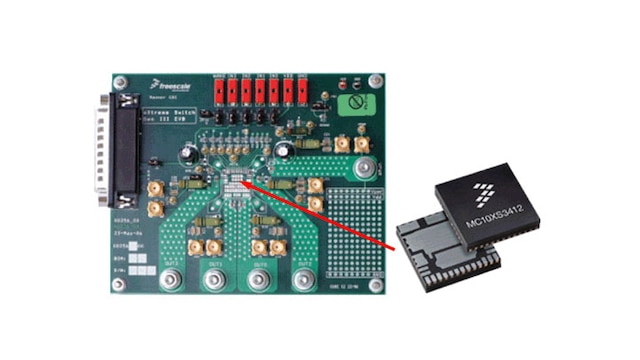

KIT10XS3412EVBE-Image

Click to expand

  • KIT10XS3412EVBE
    Active

  • Evaluation Kit - MC10XS3412, Quad High Side Switch (Dual 10 mOhms, Dual 12 mOhm).

    • Kit Contains:

    • KIT10XS3412EVBE Hardware
    • Quick Reference Guide
    Order from distributors
