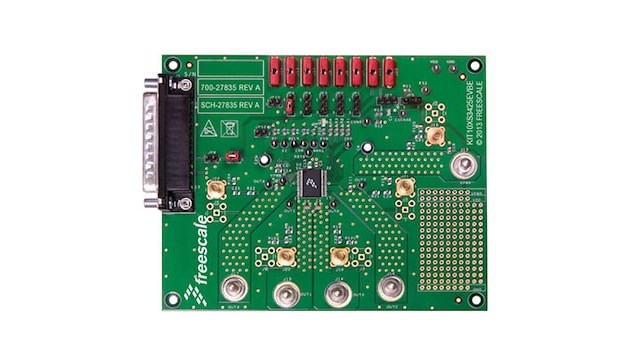

The KIT10XS3425EVBE is an easy-to-use circuit board that allows the user to exercise all the capabilities of the MC10XS3425, as a 12 V quad high side switch product family, with integrated control and a high number of protective and diagnostic functions. The MC10XS3425 is one in a family of devices designed for low-voltage automotive lighting applications. Its four low RDS(ON) MOSFETs can control four separate 55 W/28 W bulbs, and/or Xenon modules, and/or LEDs.
This family of devices is designed for low-voltage automotive lighting applications. Its four low RDS(ON) MOSFETs can control:
Evaluation Kit - MC10XS3425, Quad High Side Switch (Dual 10 mOhms, Dual 25 mOhm).
