Evaluation Kit - MC10XS3435, Quad High Side Switch

KIT10XS3435EVBE
No Longer Manufactured

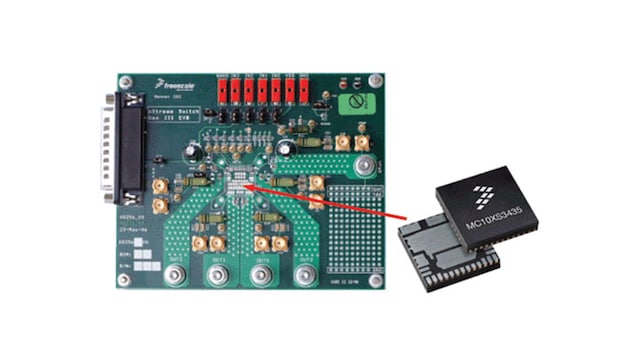

Click image to open expanded view

This evaluation kit supports the MC10XS3435 family of devices—designed for low-voltage automotive lighting applications. Benefits include:

  • Programming, control, and diagnostics are accomplished using a 16-bit SPI interface
  • Output with selectable slew-rate satisfies electromagnetic compatibility (EMC) requirements
  • Each output can be controlled with an internal PWM modulated clock signal (instead of an external clock)

Product Details

Features

Power Management

  • Operating voltage range of 6.0 V to 20 V with sleep current < 5.0 µA, extended mode from 4.0 V to 28 V
  • 8 MHz 16-bit 3.3 V and 5 V SPI control and status reporting with daisy chain capability
  • Smart over-current shutdown, severe short-circuit, over-temperature protections with time limited auto-retry, and fail-safe mode in case of MCU damage

General Specifications

  • Output OFF or ON open-load detection compliant to bulbs or LEDs and short-to-battery detection. Analog current feedback with selectable ratio and board temperature feedback

Components

  • Four protected high-side switches

Buy Options

KIT10XS3435EVBE-Image

Click to expand

KIT10XS3435EVBE
No Longer Manufactured

Evaluation Kit - MC10XS3435, Quad High Side Switch (Dual 10 mOhms, Dual 35 mOhm).
