KIT34675EPGRBR Gerber files to build PCB
- No Longer Manufactured
- Evaluation Kit - 34675, Single-cell Li-Ion Battery Charger
Evaluation Kit - 34675, Single-cell Li-Ion Battery Charger
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

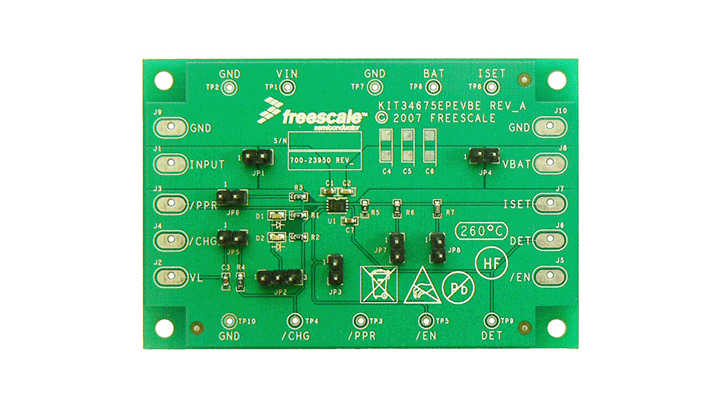

The KIT34675EPEVBE evaluation kit supports the 34675 charger for single-cell Li-Ion batteries, which eliminates the input over-voltage protection (OVP) circuit required in handheld devices such as cell phones, Bluetooth accessories, and portable media players.
- Provides the industry’s flexible Li-ion and Li-polymer battery charger solution
- Can directly power a sub-system, such as USB transceivers
- Easily modified to meet the needs of a wide variety of applications
- Supports faster time to market and lower system cost
- Saves board space
- Offers low external component count
Product Details
Features
Power Management
- ±0.7% voltage accuracy and ±5% current accuracy over the -40 °C to 85 °C range
- 4.85 V/10 mA linear regulator with 6.8 V input over-voltage protection threshold
- 28 V maximum voltage for the power input with 6.8 V over-voltage protection threshold
- Trickle charge for fully discharged batteries
- Guaranteed maximum 1 A programmable CC-mode current
General Specifications
- No external MOSFET, reverse-blocking diode, or current-sense resistor is required
