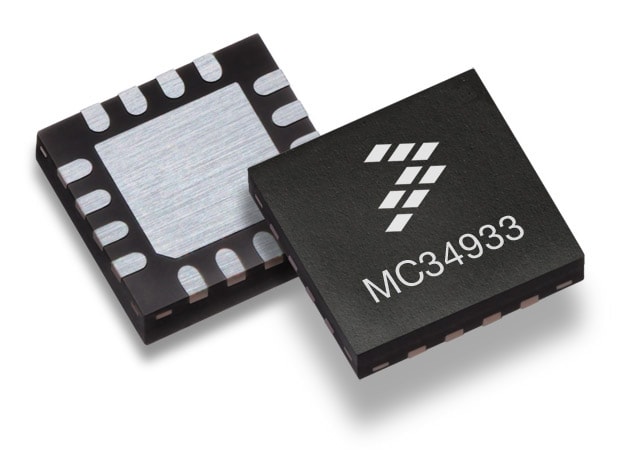

H-Bridge Motor Driver, 2-7 V, 1.4 A, 200 kHz

  • This page contains information on a product that is not recommended for new designs.

Roll over image to zoom in

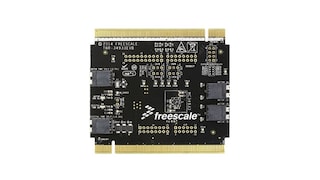

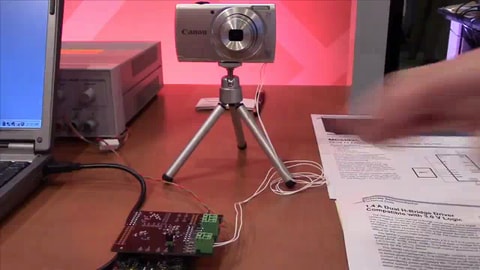

Product Details

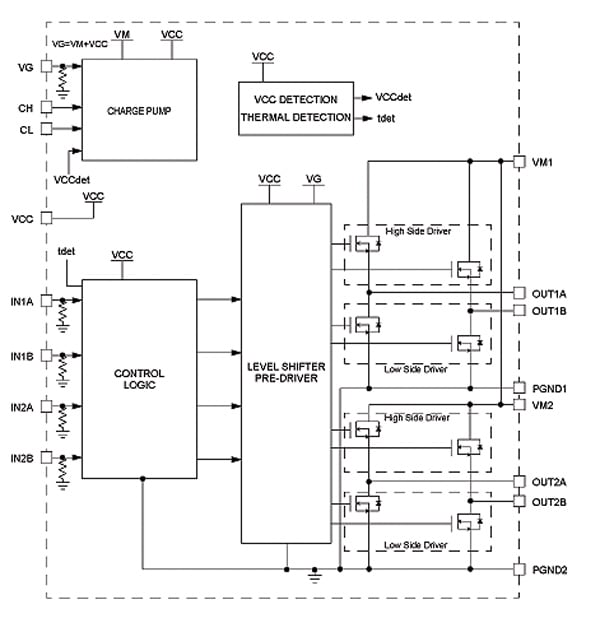

Block Diagram

NXP MC34933 Power Actuation Block Diagram

NXP MC34933 Power Actuation Block Diagram


Key Features

  • Built-In 2-Channel H-Bridge Driver
  • H-Bridge Operation Voltage 2.0 V ~ 7.0 V
  • Output Current 1.0 A @TA=25°C
  • Low Total RDS(ON) 0.8 Ω (Typ), 1.0 Ω (Max) @ TA=25 °C
  • Dual Channel Parallel Driver, RDS(ON) 0.4Ω (Typ). Max DC Current 1.4 A
  • PWM Control Input Frequency up to 200 kHz
  • Built-In Shoot-Through Current Prevention Circuit
  • Built-In Charge Pump Circuit (External Cap type)
  • VCC Low Voltage Detection for logic power supply voltage
  • Thermal Detection for H-Bridge driver
  • Parallel interface and input control
  • Ambient operating temperature -20 °C (Min), 85 °C (Max)

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MC34933 is included in the 15-year program

Part numbers include: MC34933EP.
