Evaluation Kit - 33982, Single 2 mOhm High Side Switch

KIT33982CEVBE Active

Roll over image to zoom in

The Evaluation Kit supports the 33982, which is a self-protected silicon 2.0 mΩ high side switch used to replace electromechanical relays, fuses, and discrete devices in power management applications. The 33982 is designed for harsh environments, and it includes self-recovery features. The device is suitable for loads with high inrush current, as well as motors and all types of resistive and inductive loads.

Product Details

Supported Devices

Power Management

High Side Switches

  • MC12XS2: 12 V Multipurpose Low RDSON eXtreme Switch

Features

Power Management

  • 6.0 V to 27 V operating voltage with standby currents < 5.0 µA
  • Enhanced -16 V reverse polarity VPWR protection

General Specifications

  • Single 2.0 mO max high side switch with parallel input or SPI control
  • Output current monitoring with two SPI-selectable current ratios
  • SPI control of over-current limit, over-current fault blanking time, output-OFF open load detection, output ON/OFF control, watchdog timeout, slew rates, and fault status reporting
  • SPI status reporting of over-current, open and shorted loads, over-temperature shutdown, under-voltage and over-voltage shutdown, fail-safe pin status, and program status

Buy Options

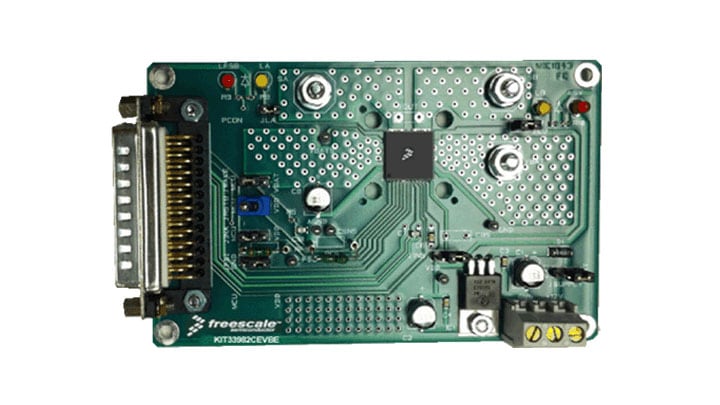

KIT33982CEVBE-Image

Click to expand

  • KIT33982CEVBE
    Active

  • Evaluation Kit - MC33982, Single 2 mOhm Intelligent High-current Self-protected High Side Switch.

    • KIT33982CEVBE Hardware
    • Quick Reference Guide
  • $111.42 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
