Evaluation Kit for MC17XS6400EK, Quad High Side Switch

KIT17XS6400EKEVB

Roll over image to zoom in

NXP’s KIT17XS6400EKEVB is a hardware tool for evaluation and development. This evaluation board can be used to evaluate the MC17XS6400 which is a 12 V quad high-side device that features integrated control with high flexibility, and a high number of protection and diagnostic functions.

This device is designed for low-voltage automotive lighting applications and can drive a wide range of sources, including LEDs. Programming, control and diagnostics are accomplished using a 16-bit SPI interface, which makes possible a large array of configurations, diagnostics and protection features.

Product Details

Select a section:

Supported Devices

Power Management

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Features

Evaluation module

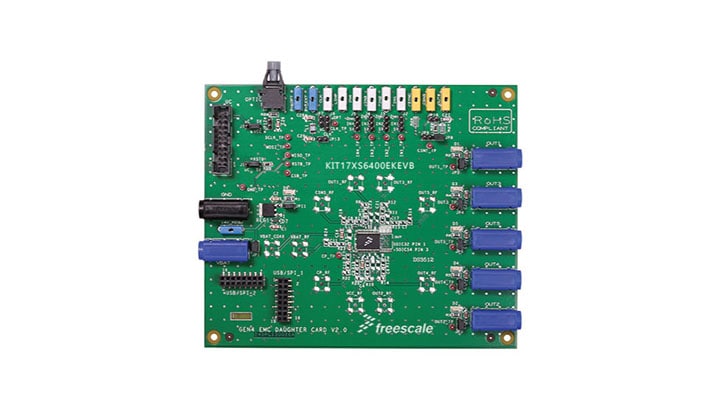

  • This evaluation board consists of an MC17XS6400 IC in a 32-pin SOIC-EP with exposed pads.
  • This board can control
    • Four separate 28 W bulbs
    • Four separate LED modules
    • Four separate loads of other types
  • Device can be driven by the 16-bit SPI using KITUSBSPI with SPIGen software or with direct input signals in Fail-safe mode operation. It also offers the possibility to apply an external clock in order to drive outputs in PWM operation.

MC17XS6400

  • Quad 17 mOhm high side switches with high transient current capability
  • 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting
  • Output current monitoring with programmable synchronization signal and battery voltage feedback
  • Limp Home mode
  • External smart power switch control
  • 6.0 to 28 V operating voltage
  • -16 V reverse polarity and ground disconnect protections
  • Compatible PCB foot print and SPI software driver among the family

Buy Options

KIT17XS6400EKEVB-Image

Click to expand

  • KIT17XS6400EKEVB

  • Evaluation Kit - MC17XS6400, 12 V, Quad 17.0 mOhms, High Side Switch.

    • KIT17XS6400EKEVB Hardware
    • Quick Reference Guide
  • $93.84 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1-5 of 6 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    Gerber files for the KIT17XS6400EKEVB Evaluation Kit

    ZIPRev 1.0Jul 21, 2014 00:00:00320.7 KBKIT17XS6400EKEVB-GRBR
    Download

Software

Filters

2 software files

  • Components and Modules

    12XS6 SPIGEN Configuration File

    SPIRev 1Sep 4, 2014 00:00:004.5 KB12XS6-SPIGEN
    Download
  • Components and Modules

    KIT17XS6400 SPIGEN Configuration File

    SPIRev 1Jul 14, 2014 00:00:004.5 KBKIT17XS6400_SPIGEN
    Download
